Rheem RCBA-2457T Evaporator Coil

Name: Rheem RCBA-2457T Evaporator Coil
Brand: Rheem
SKU: RCBA-2457T
Price: 489.38 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Rheem RCBA-2457T Evaporator Coil

SKU: RCBA-2457T

Brand:

Rating:

Quantity	Price	Stock
2 Usually Ships 1 - 2 Weeks	$489.38 /ea	2

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

The RCBA-2457T found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Rheem RCBA-2457G Evaporator Coil	RCBA-2457G Brand Rheem

Add to Cart

Add to Wishlist

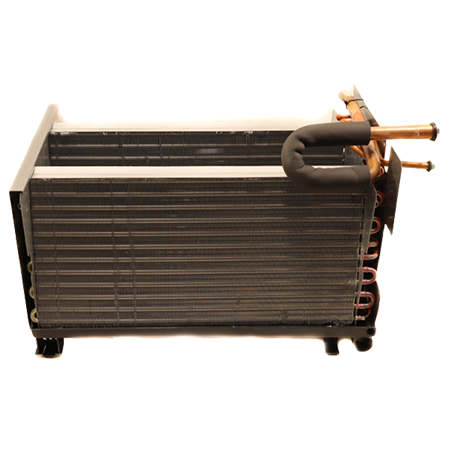

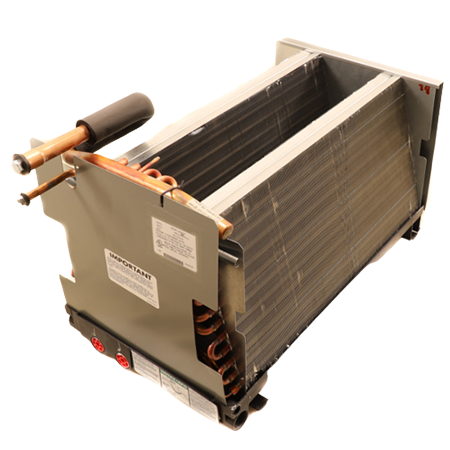

The RCBA-2457T is an uncased evaporator coil that has a 3/8" liquid line and 3/4" suction line size sweat or brazes connection with a 57 orifice size. It is designed with copper coils that with an 18,000 to 24,000 BTU/hr cooling capacity and a 10 SEER rating. UL-listed

The uncased evaporator coil is suitable for heat pump applications with R-22 and R-410A refrigerants. It has a multi-position airflow with a 600 to 800 CFM flow capacity that provides excellent performance and efficiency.

The RCBA-2457T directly replaces part number RCBA-2457GP, RCBA-2457G, RCBA-2457T737, RCBA-2457T031, and RCBA-2457G737.

Liquid Line Connection Size	3/8"
Suction Line Connection Size	3/4"
Orifice Size	57
Approvals	UL-listed
SEER rating	10 SEER
Refrigerants	R-22 and R-410A
Flow Capacity	600 to 800 CFM
Connection Type	Sweat or Braze
Coil Material	Copper
Application	Heat Pumps

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

What is the SEER Rating of SKU: RCBA-2457T Brand: Rheem

Asked on June 04, 2022 by Reginald from Atlanta

1 Answers

Have an answer? Click Here

Unfortunately, the resources provided by Rheem does not specify the SEER rating of the Rheem RCBA-2457T.
That information will be published once it becomes available.

Replied on June 08, 2022 by Brian from Industrial Stores

Hi There, My customer get M/N:RCBA-2457GG14 coil for R-22. Is this replacement OK for The Coil. I'm estimating for whole units or just coil. thanks, Stone

Asked on June 21, 2020 by Stone from KY

1 Answers

Have an answer? Click Here

The Rheem-Rudd RCBA-2457GG14 Multiflexed Case or Uncased Indoor Coils has the following replacement parts:

61-25414-57 Flowcheck Piston Kit
68-101805-85 Rheem 68-101805-81 14" Vertical 4 Row Drain Pan
68-101806-01 Rheem 68-101806-01 Horizontal Drain Pan
RCBA-2457G Rheem RCBA-2457G Evaporator Coil
- PLEASE NOTE: The RCBA-2457G is now OBSOLETE and the DIRECT REPLACEMENT is the Rheem RCBA-2457T Evaporator Coil (the coil on this page)

Replied on June 22, 2020 by Ori from Industrial Stores
