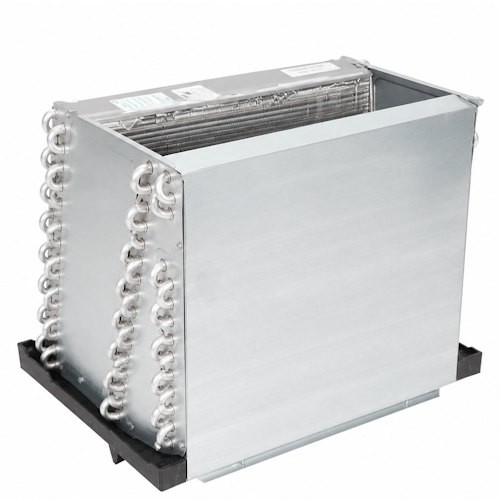

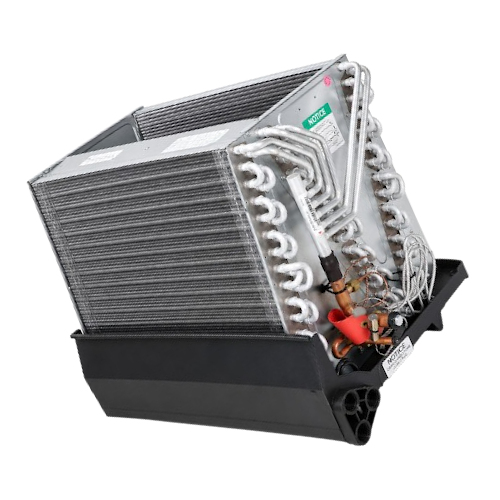

The Rheem RCHZ3617STANVU evaporator coil is designed for residential and light commercial HVAC systems requiring a 3 ton R410A indoor cooling coil. Its uncased N-coil configuration supports efficient heat transfer while helping the system remove indoor humidity during the cooling cycle.
This model is built for vertical-only installation and is commonly used as a replacement service coil in compatible Rheem and Ruud HVAC systems. The 17.5" cabinet width makes it suitable for matched system installations where space, airflow alignment, and refrigerant compatibility are key considerations.
The RCHZ3617STANVU includes TXV refrigerant control for stable metering performance and is listed as a standard-efficiency uncased air handler coil. This coil has a 36,000 BTU/h nominal capacity and uses 3/8" liquid and 3/4" suction connections.
Q: What is the Rheem RCHZ3617STANVU evaporator coil used for?
A: The Rheem RCHZ3617STANVU is used as an indoor evaporator coil for residential and light commercial HVAC cooling systems. It is a 3-ton, R410A-compatible uncased N-coil designed to support heat transfer and indoor humidity removal during the cooling cycle.
Q: What is the cooling capacity of the Rheem RCHZ3617STANVU?
A: This evaporator coil has a nominal capacity of 36,000 BTU/h, which is commonly referred to as a 3-ton cooling capacity.
Q: What refrigerant does the Rheem RCHZ3617STANVU use?
A: The RCHZ3617STANVU is designed for systems using R410A refrigerant.
Q: Is the Rheem RCHZ3617STANVU a cased or uncased coil?
A: The Rheem RCHZ3617STANVU is an uncased evaporator coil. It is listed as an uncased air handler coil for compatible HVAC installations.
Q: Can the Rheem RCHZ3617STANVU be installed horizontally?
A: The coil is originally designed for vertical-only installation. However, Industrial Stores notes that it may be used in a horizontal application when paired with the Rheem RXHH-A03 Horizontal Adapter Kit.
Q: Does the Rheem RCHZ3617STANVU include a TXV?
A: Yes. The RCHZ3617STANVU includes TXV refrigerant control, which helps provide stable refrigerant metering performance.
Q: What are the refrigerant line connection sizes?
A: The Rheem RCHZ3617STANVU has a 3/8-inch liquid line connection and a 3/4-inch suction line connection.
Q: What cabinet width is this coil designed for?
A: This model has a 17.5-inch cabinet width, making it suitable for matched installations where cabinet size, airflow alignment, and refrigerant compatibility are important.
Q: Is the Rheem RCHZ3617STANVU a direct replacement for the RCH-3617STAVUA?
A: Yes. The product page lists the Rheem RCHZ3617STANVU as a direct replacement for the obsolete Rheem RCH-3617STAVUA Evaporator Coil.
Q: Will the Rheem RCHZ3617STANVU replace RCFLHM3617CC?
A: No. Industrial Stores states that the RCHZ3617STANVU should not be considered a direct fit for RCFLHM3617CC because the cabinet style, width, and application are different. A licensed HVAC technician should confirm compatibility before purchase.
Q: How does this product ship?
A: The Rheem RCHZ3617STANVU ships by LTL truck, according to the shipping note on the product page.
| Tonnage | 3-Ton |
|---|---|
| Coil Type | N-Coil |
| Capacity | 36,000 BTU/h |
| Refrigerant | R410A |
| Casing | Uncased |
| Liquid Line Connection Size | 3/8" |
| Suction Line Connection Size | 3/4" |
| Installation / Orientation | Vertical Only |
| Efficiency | Standard Efficiency |
| Application | Uncased Air Handler Coil |
Q & A: Ask the Questions, share answers
Do you have questions about this product?
Have an answer? Click Here
Have an answer? Click Here
No, the Rheem RCHZ3617STANVU would not be considered a direct fit for model RCFLHM3617CC.
Based on the available product information, the RCFLHM3617CC is a 3 ton, 17 inch, multi position cased coil, while the RCHZ3617STANVU is a 3 ton, 17.5 inch, uncased, vertical only N coil. Because the cabinet style, width, and application are different, it should not be treated as a direct replacement for the RCFLHM3617CC.
To help avoid fit, performance, or installation issues, we recommend not purchasing this coil until your application has been reviewed by a local licensed HVAC technician who is familiar with your system, your installation requirements, and all applicable local codes and safety standards.
