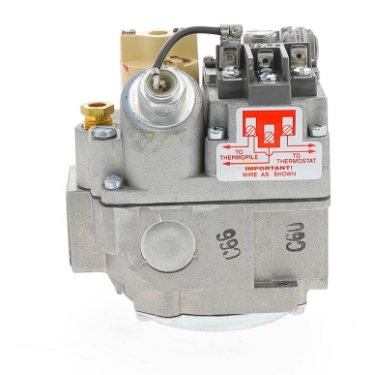

Robertshaw 700-506 Gas Valve

Robertshaw 700-506 Gas Valve
Images for general purposes only. Actual may be different than depicted.
Robertshaw 700-506 Gas Valve

Robertshaw 700-506 Gas Valve

SKU: 700-506
Rating:
Quantity Price Stock
10
Usually Ships 1-2 Weeks
$147.33     /ea
10
0
$0.00
0
$0.00
0
700-506
Robertshaw Series 700 Gas Valve

The 700 millivolt gas valves are wall thermostat actuated combination gas valves. These controls combine a manual gas cock, automatic pilot safety valve and a millivolt operator. The automatic pilot safety is separate from the gas cock and provides gas shutoff in case of pilot outage. Regulated and non-regulated models are available (see ordering chart). Standard features include: pilot outlet, pilot gas filter and pilot adjusting key.

Note: VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN.

Features:
  • Gas cock dial marking Off - Pilot - On
  • Pilot outlet 1/4” tubing
  • Ambient temperature of -40°F to 175°F
  • Terminal type combination screw/spade
  • Maximum inlet pressure 14” WC (0.5 PSI)
  • Standard NEMA terminals
  • Inlet filtered screen
  • Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
  • RoHS compliant
Valve Type Millivolt
Capacity 300,000 Btu
Inlet Size 3/4"
Outlet Size 3/4"
Outlet Side Type Straight-Thru
Pressure Regulator Setting 3.5" W.C. Natural Gas
Electrical Rating 250mV to 750mV
Compatible Coaxial and 2-lead thermopile

Download Product Information:

Robertshaw 700-506 Millivolt Combo Gas Valve
