Sauermann SI30UL01UN23 Mini Condensate Removal Pump 230V 50/60 Hz 14W

Sauermann SI30UL01UN23 Mini Condensate Removal Pump 230V 50/60 Hz 14W
Images for general purposes only. Actual may be different than depicted.
Sauermann SI30UL01UN23 Mini Condensate Removal Pump 230V 50/60 Hz 14W

Sauermann SI30UL01UN23 Mini Condensate Removal Pump 230V 50/60 Hz 14W

SKU: SI30UL01UN23
UNSPSC: 40151500
Rating:
Quantity Price Stock
153
Usually Ships 1 Week
$164.81     /ea
153

The SI30UL01UN23 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Heil Quaker SI30UL01UN23 Condensate SI 30 Pump 230V SI30UL01UN23.

Brand Heil-Quaker
Heil Quaker SI30UL01UN23 Condensate SI 30 Pump 230V
0
$0.00
0
$0.00
0
SI30UL01UN23
The Sauermann SI30UL01UN23 is a mini condensate removal pump rated at 230V, 50/60 Hz, and 14W power consumption.  UL and CSA certified by Intertek,  ensuring safe and reliable performance.

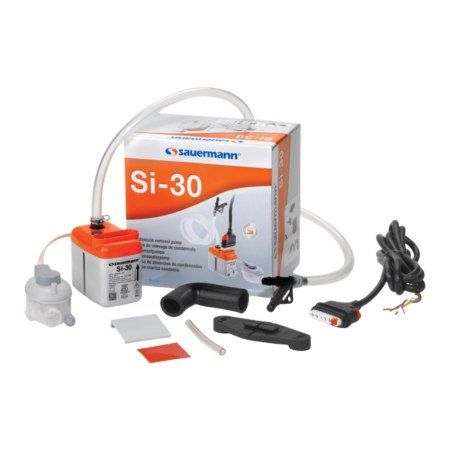

Package Inclusions

  • Si-30 piston pump with clear PVC tube and pre-mounted drain safe device
  • 5’ power cable with 2 power wires and 2 safety contact wires
  • Anti-vibration rubber damper
  • Si2958 detection unit with 2’ cable
  • Detection unit installation kit:
    • 6 tie wraps
    • Adhesive
    • Vent tube
    • Rubber elbow
    • Mounting rail

This space-saving pump measures 2-5/8” L x 1-3/4” W x 2-3/8” H.  Engineered for quiet, efficient condensate removal, operating at 20 dBA.  Its patented piston technology delivers dependable performance while the built-in anti-siphon prolongs pump life.

Identical to the Heil-Quaker SI30UL01UN23 pump.  Specifically designed for air conditioners up to 5.6 tons (20 kW / 67kBtu).  Also offers versatile installation options and double insulation for enhanced safety.
Power Supply 230V, 50/60 Hz, 14W
Maximum Flow Rate 5.0 gph (19 l/h)
Maximum Suction Head 10ft (3m)
Maximum Discharge Head 33ft (10m); flow rate = 1 gph
Maximum Pressure 46ft (14m); flow rate = 0 gph
Detection Levels On: 5 /8” / Off: 7 /16” / Safety: 3 /4”
Operating Conditions 70%: 3s On - 1s Off
Safety Switch NC 8A Resistive - 250 V
Thermal Protection 240°F Auto-Reset
Sound Level at 3.3FT 20 dBA according to EN ISO 3744
