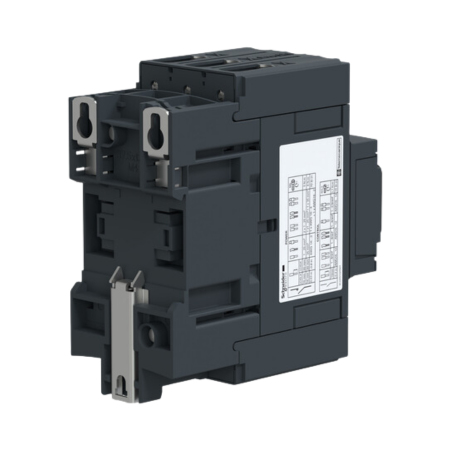

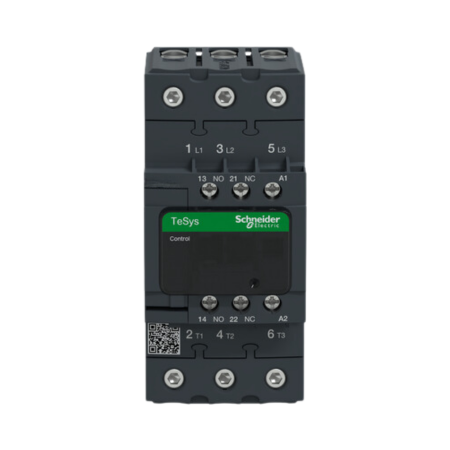

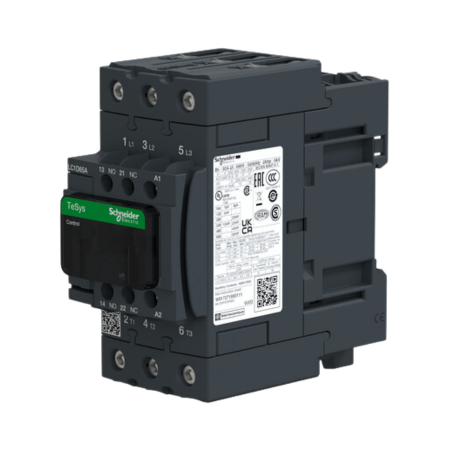

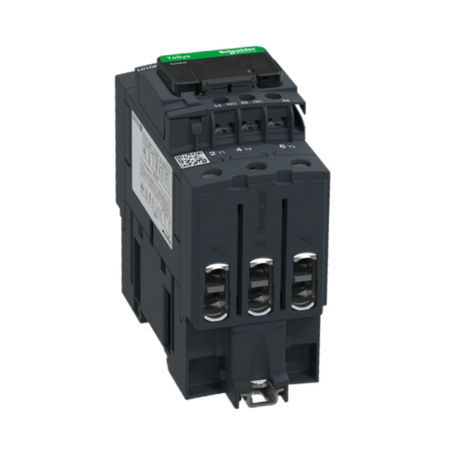

The Schneider Electric LC1D65AB7 TeSys Deca is a 3-pole non-reversing contractor operating at 65A, 24V, and 50/60 Hz power ratings. Multi-standards Certified (CB, CE, CCC, CSA, EN, EAC, IEC, Marine, UL, UKCA) and Green Premium Compliant (RoHS/REACh).
The contractor is an electrical device used to control and switch the electrical power of a system. Features a 1 normally closed and 1 normally open built-in auxiliary contact, a power connection by EverLink BTR screw connectors, and a control connection by screw clamp terminals.
The LC1D65AB7 is a direct replacement for 037H008013. It is suitable for motor control and resistive load applications mounted with a DIN rail or plate. Compatible with the following auxiliary model numbers:
| LAD6K10B LADN02 LADN20 LADR0 LADT0 |
LAD8N02 LADN04 LADN22 LADR2 LADT2 |
LAD8N11 LADN11 LADN31 LADR4 LADT4 |
LAD8N20 LADN13 LADN40 LADS2 |
| Maximum Temperature | 140°F (60°C) |
|---|---|
| Number of Pole | 3-Pole |
| Voltage | 24Vac |
| Frequency | 50/60 Hz |
| Amperage | 65A |
| Range of Product | TeSys Deca |
| Application | Motor Control/Resistive Load |
| Approval | CE, CCC, CSA, UL |
| Mounting Support | Rail/Plate |
| Auxiliary contact composition | 1 Normally Open and 1 Normally Closed |
Download Product Information:
Schneider Electric LC1D65AB7 TeSys Deca Contactor Data Sheet
