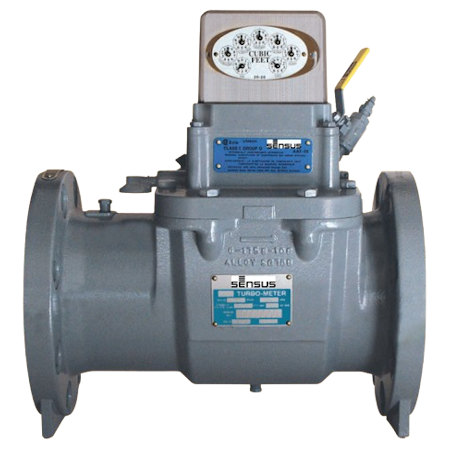

The Sensus T-18 Mark II Turbo Meter is a 4" turbine flow meter designed for accurate measurement of gas flow in utility applications.  This rebuilt model features ANSI 125 flat-faced flanges with a 14" flange-to-flange distance, accommodating standard pipeline installations.  It operates at a maximum allowable operating pressure of 175 PSIG, ensuring suitability for various pressure conditions.

Equipped with a 45-degree rotor angle, the T-18 is capable of handling a maximum flow rate of 18,000 actual cubic feet per hour (ACFH).  This design enhances the meter's ability to extract kinetic energy from the gas flow, improving measurement accuracy.

The Mark II Turbo Meter series allows the measurement module to be removed without disturbing the meter body.  All moving parts are housed in a sealed chamber, protecting them from line contaminants and ensuring longevity. This also allows for the acceptance of various meter-mounted readout devices and provides calibrated pulse outputs for electronic measurement.
