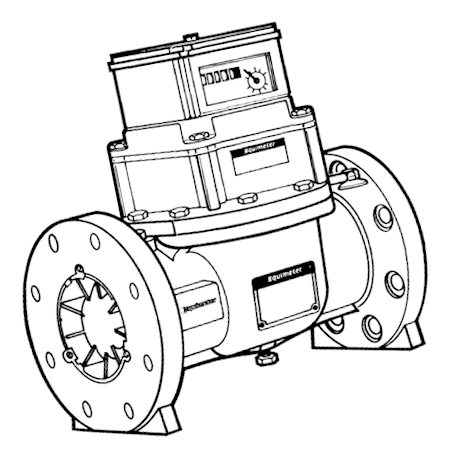

​The Sensus T-18 Mark II Turbo Meter is designed for accurate measurement of gas flow in commercial and industrial applications.  It has a pressure rating of 125 PSI and a 4" flange connection.

Key Features:

• Top-Entry Design: The meter features a top-entry design, allowing the measurement module to be removed without disassembling the pipeline, facilitating easy maintenance and reducing downtime.

• Sealed Measurement Chamber: All moving parts are housed in a sealed chamber, protecting them from line contaminants and ensuring long-term reliability. ​

• Rotor Design: The unique 45° or 30° blade angle rotor extracts maximum kinetic energy from the flowing gas, enhancing measurement accuracy.

• Flange Dimensions: The meter's flange dimensions conform to ANSI B16.42 and B16.5 standards, ensuring compatibility with standard piping systems. ​

• Flow Capacity: At 125 PSI, the T-18 model can handle a maximum flow rate of approximately 174,000 SCFH (Standard Cubic Feet per Hour).

The Mark II Turbo Meter series combines wide rangeability, low pressure loss, uninterrupted gas flow, and near-instantaneous response to rapid flow changes. These features make it ideal for high-volume measurement applications, including custody transfer measurement in distribution systems, pipeline interconnections, and fuel gas measurement for electric generating stations.
