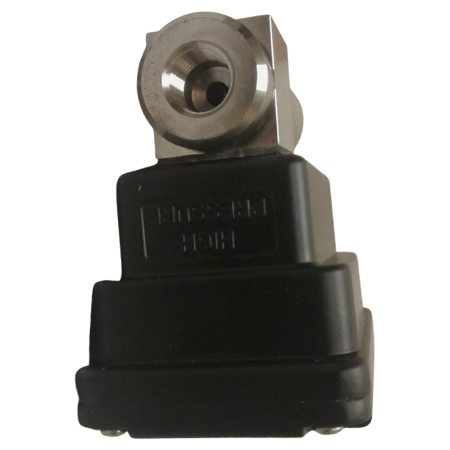

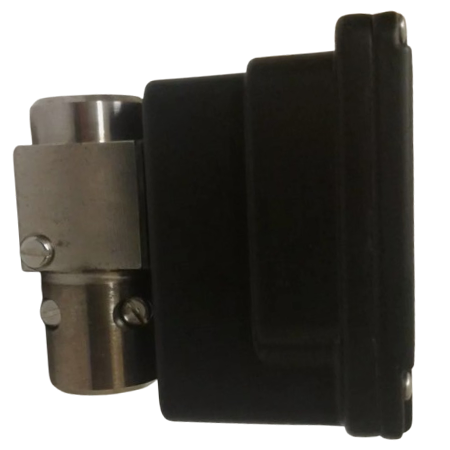

The 2301010PD2F11B is a pressure transducer that has a 0-10 PSID unidirectional pressure range, 1/4" NPT (F) fitting, 24 VDC, and 4-20 mA output.  It includes a standard Viton bleed screw seal, ensuring robust performance in various environments.  The unit is CE and RoHS-compliant.

The Setra Model 230 pressure transducer is ideal for applications requiring precise differential pressure monitoring in systems with wet-to-wet applications.  It use a single diaphragm design, which eliminates sensitivity to line pressure changes and enhances measurement accuracy with ±0.25% FS.  The stainless steel capacitive sensor ensures rapid response and linear analog output, making it compatible with both gas and liquid media over a wide temperature range.

The 2301010PD2F11B is easy to install and maintain with NEMA 4-rated housing provides reliable protection, and the brass body’s seamless construction prevents internal leaks, reducing installation time and maintenance costs.
