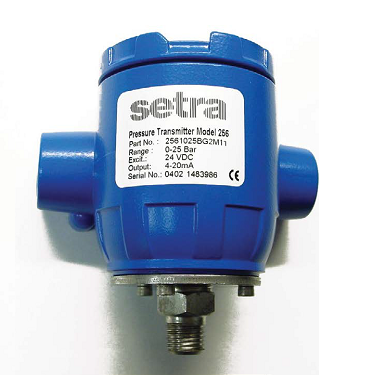

The Model 256 is one of the most rugged and reliable sensors available. Specifically designed for NEMA4/IP65 service the 256 is packaged in a die-cast aluminum enclosure and includes Setra’s robust capacitive design, making it resistant to environmental effects such as shock, vibration, temperature and EMI/RFI.

Available in a wide variety of gauge pressure ranges, the 256 features adjustable potentiometers for zero and span settings.

Only 3.6” high x 4.0” wide, the Model 256 is designed for compact installations. The removable cover provides easy access to the internal terminal strip for wiring. Installation is quick and easy with 1/2 inch internal threaded conduit ports for electrical termination.

BENEFITS

■ Low Cost
■ High Accuracy
■ NEMA-4/IP-65
■ Wide Operating Temperature Range
■ Compatible with a Wide Range of Gases or Liquids
■ Corrosive Resistant All Stainless Steel Wetted Parts
■ Choice of Voltage or Current Output
■ Operates on Low Cost Unregulated Power Supply
■ Meets CE Conformance Standards

APPLICATIONS

■ Process Control
■ Chemical Processing
■ Agricultural Irrigation Systems
■ Natural Gas Pipeline Monitoring
■ Grain Processing
■ Industrial Pressure Monitoring

NOTE: Setra quality standards are based on ANSI-Z540-1. The calibration of this product is NIST traceable. U.S. Patent nos. 6019002; 6014800
