Setra 2561150PG2M11 Pressure Transducer 0-150 PSI Gauge 1/4" 4-20 mA

Name: Setra 2561150PG2M11 Pressure Transducer 0-150 PSI Gauge 1/4" 4-20 mA
Brand: Setra
SKU: 2561150PG2M11
Price: 581.46 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Setra 2561150PG2M11 Pressure Transducer 0-150 PSI Gauge 1/4" 4-20 mA

SKU: 2561150PG2M11

Brand:

Rating:

Quantity	Price	Stock
7 Usually Ships 1 - 2 Weeks	$581.46 /ea	7

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

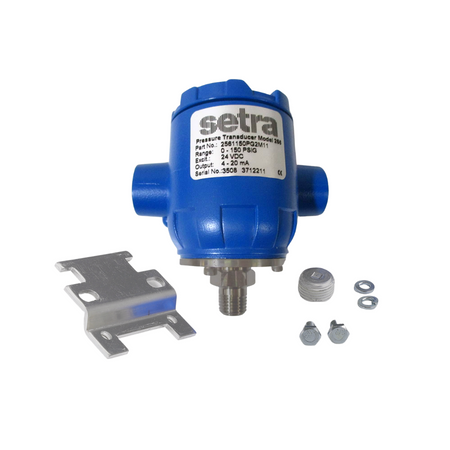

The Setra 2561150PG2M11 is a NEMA4/IP65-rated pressure transducer with a 1/4" NPT connection. This device has a pressure range of 0-150 psi and accepts 4-20 mA output.

The pressure transducer features adjustable potentiometers for zero/span settings and a removable cover for easy internal wiring access. And it has a die-cast aluminum enclosure resistant to environmental effects like shock, vibration, temperature, and EMI/RFI.

The 2561150PG2M11 is suitable for process control, grain/chemical processing, agricultural irrigation system, and industrial pressure/natural gas pipeline monitoring.

Compensated Temperature Range	-4° to 176°F (-20 to 80°C)
Output	4 to 20 mA 0.1 to 5.1 VDC
Pressure Range (Gauge)	0-150 psi
Enclosure Material	Die Cast Aluminum
Enclosure Rating	NEMA4/IP65
Electrical Terminations	Two 1/2” Int. conduit ports
Operating Temperature Range	-40° to 185°F (-40° to 85°C)
Connection Size	1/4" NPT

Download Product Information:

Setra Model 256 Pressure Transducer Tech Sheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Setra 2561150PG2M11 I am a wholesaler and have someone looking for this part and they say it must be certified. Do you have any idea what that means and is your part certified?

Asked on March 15, 2017 by Greg from Brentwood MD

1 Answers

Have an answer? Click Here

Setra Pressure Transducers that end with the letter C come with a Calibration Certificate. Not all products are offered with calibration certification. There are some products for which you can purchase a certification along with the product. Other products you must have certified separately from the (National Institute of Standards and Technology (NIST). For these Setra Model 256 transducers, they do not come with a calibration certificate, not is it possible to buy one from us. This would have to be calibrated and certified after purchase. Any certifications that are provided by the manufacturer will come standard in the box.

Replied on March 15, 2017 by Ron from Industrial Stores
