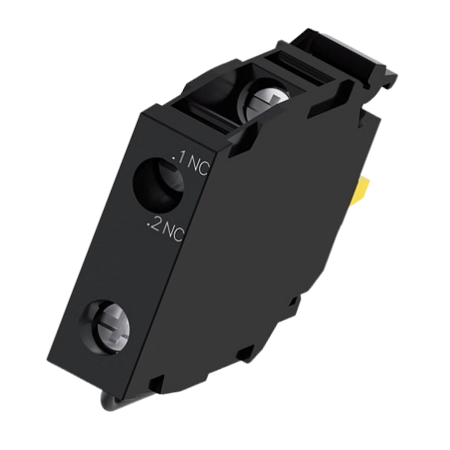

The 3SU14001AA101HA0 is a contact element that has 1 Normally Closed (1NC) configuration, 500V insulation voltage rated value, and 10A thermal current rating. This product is approved by CCC, UL-listed, EAC, and CSA-certified.
The contact module features a silver alloy design for the auxiliary contacts, ensuring optimal conductivity and durability. The unit has a maximum operating frequency of 3,600 per hour with -25 to +70 °C ambient temperatures
The 3SU14001AA101HA0 is easy to install with screw-type terminals for secure electrical connections.
| Contact Configuration | 1 Normally Closed |
|---|---|
| Insulation Voltage Rated Value | 50V |
| Type of Voltage | AC/DC |
| Surge Voltage Resistance Rated Value | 6 kV |
| Enclosure Protection Class | IP40 |
| Terminal Protection Class | IP20, clamping screw tightened |
| Operating Frequency Maximum | 3,600 per hour |
| Thermal Current | 10A |
| Design of the Contact of Auxiliary Contacts | Silver alloy |
| Approvals | CCC, UL-listed, EAC, and CSA-certified |
Download Product Information:
Siemens 3SU14001AA101HA0 Contact Element Technical Datasheet
