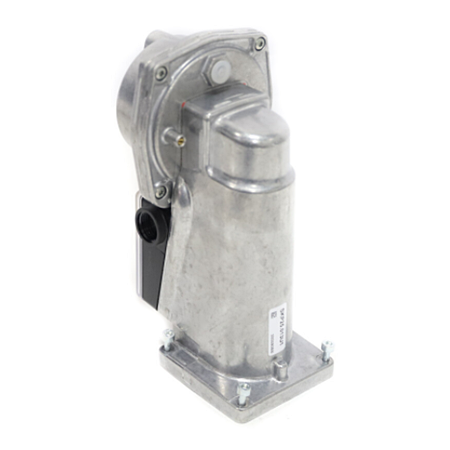

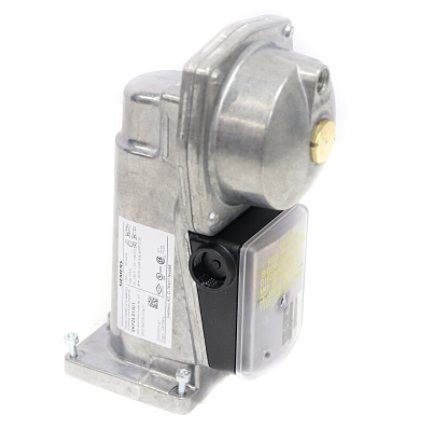

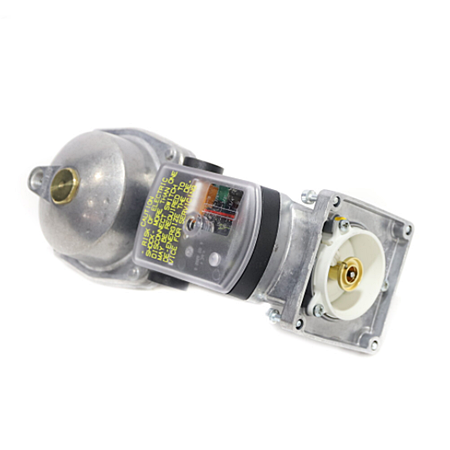

The Siemens SKP25.013U1 is a 120V Gas Valve Actuator with Safety Shutoff.  Used together with VG Gas Valves on industrial and commercial burners for regulating gas pressure.  Applicable to 1/2-inch to 6-inch in size VG Gas Valve bodies.

The SKP25 Pressure Regulating Gas Valve Actuators are multifunctional, it does regulate gas pressure plus it has a safety shutoff function.   A 1:1 air/gas ratio regulator or zero governor can be applied to the actuators.  During power interruption, the actuator closes instantly.  Easy to mount on VG Valves' square flange.  Also, it features a position indicator that shows the full valve stroke and power-on light indicator.  The compact and modular design of the actuator made it easy to install on VG valves.  The actuator can be rotated 360-degrees for accessible field wiring and simple installation.

Spring & Gasket Ordering Information:


MODEL NO.	DESCRIPTION	GAS PRESSURE
AGA22	Yellow Setpoint Spring	6” to 48” WC (1.5 to 10 PSI)
AGA23	Red Setpoint Spring	40” to 100” WC (8.5 to 20 PSI)
AGA29	Unpainted Setpoint Spring	0" to 8.5” WC
AGA25.2	Damping Orifice
AGA26	Sealing Gasket
AGA28	Black bias spring
