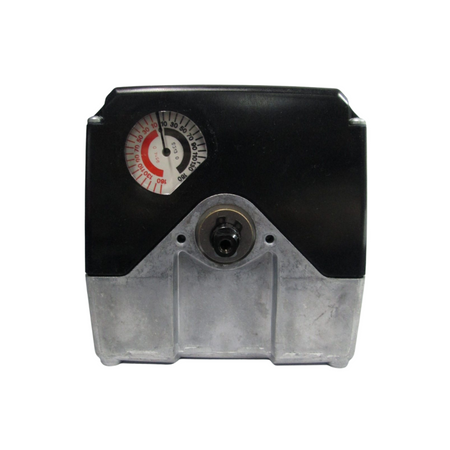

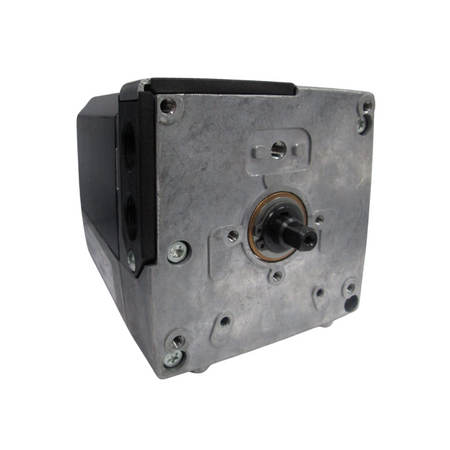

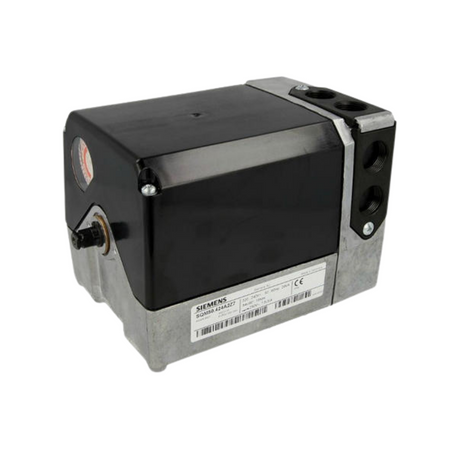

Siemens Combustion SQM50.543A80B Reversing Actuator Damper Motor 24V

Name: Siemens Combustion SQM50.543A80B Reversing Actuator Damper Motor 24V
Brand: Siemens Building
SKU: SQM50.543A80B
Price: 2731.72 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Siemens Combustion SQM50.543A80B Reversing Actuator Damper Motor 24V

SKU: SQM50.543A80B

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 3 - 4 Weeks Usually Ships 3 - 4 Weeks	$2,731.72 /ea	Usually Ships 3 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The Siemens Combustion SQM50.543A80B is a reversing electromotive actuator that delivers up to 15 Nm torque and runs 45-sec for 90° angular rotation. This has a 9mm motor shaft operating with 24 VAC and 50/60 Hz. UL and CSA Listed.

This rated IP54 reversing actuator has four (4) switches and a potentiometer used to drive air or gas dampers. Mainly for load-dependent control of gas flow and oil or combustion air volume.

The SQM50.543A80B is suitable for industrial and commercial oil or gas burner applications. This device can be mounted in any position with four (4) holes found at the actuator base edges.

Housing Material	Aluminum Pressure Die Casting
Approvals	UL and CSA Listed
Shaft Rotation	Reversible
Mounting Position	Optional
Operating Frequency	50/60 Hz
Angular Rotation for Running Time	90°/45s
Operating Voltage	24 VAC
Power Consumption	20 VA
Maximum Nm	15 Nm
Shaft Diameter	9mm

Download Product Information:

Siemen SQM5 Actuators Data Sheet
