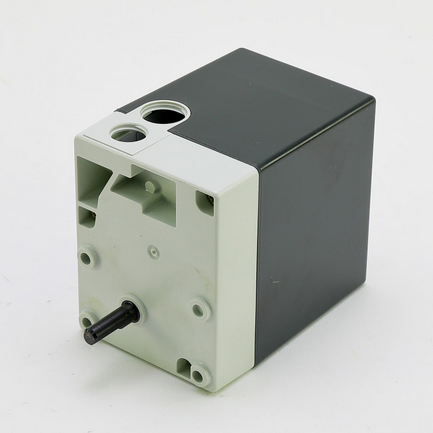

Siemens Combustion SQN31.401A1700 Damper Actuator 110V 30-Second Clockwise

Siemens Combustion SQN31.401A1700 Damper Actuator 110V 30-Second Clockwise
Images for general purposes only. Actual may be different than depicted.
Siemens Combustion SQN31.401A1700 Damper Actuator 110V 30-Second Clockwise

Siemens Combustion SQN31.401A1700 Damper Actuator 110V 30-Second Clockwise

SKU: SQN31.401A1700
Rating:
Quantity Price Stock
Ships 5-7 Days
Ships 5-7 Days
$2,360.05     /ea
Ships 5-7 Days
0
$0.00
0
$0.00
0
SQN31.401A1700
The SQN3 actuators are designed to drive gas and air dampers on small to medium-capacity oil or gas burners or for the load-dependent control of fuel and combustion air volume. A synchronous motor drives the drive shaft and the camshaft via a gear train. The attached camshaft actuates the end and auxiliary switches. The switching position of each end and auxiliary switch can be adjusted within its working range via the associated cam. Some of the actuator versions are equipped with electronic modules for auxiliary functions in connection with the end and auxiliary switches or with external devices, such as controllers
Type of Motor Synchronous
Power Consumption 6.5VA
Angular Position Maximum 160-degrees
Degree of Protection IP 40 to DIN 40050, provided adequate cable entries and fixing screws are used

Download Product Information:

Siemens SQN3 Actuator Technical Datasheet
