Siemens Industrial Controls (Furnas) Controls 69WEC Pressure Switch with Low Pressure Cut-Off

Name: Siemens Industrial Controls (Furnas) Controls 69WEC Pressure Switch with Low Pressure Cut-Off
Brand: Siemens Industrial Controls
SKU: 69WEC
Price: 166.90 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Siemens Industrial Controls (Furnas) Controls 69WEC Pressure Switch with Low Pressure Cut-Off

SKU: 69WEC

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 3 - 4 Weeks Usually Ships 3 - 4 Weeks	$166.90 /ea	Usually Ships 3 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

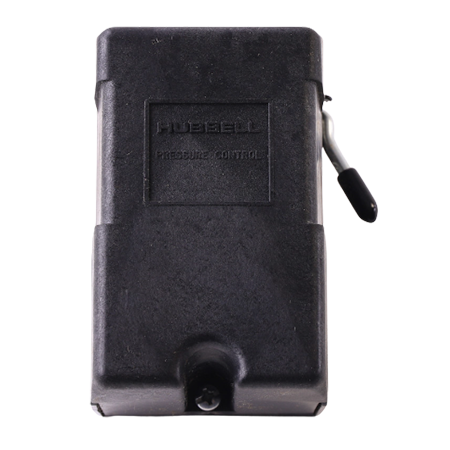

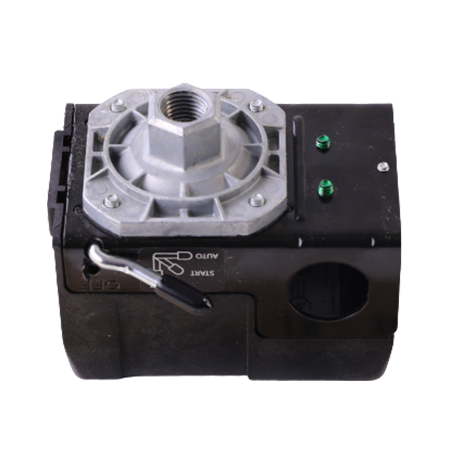

The 69WEC is a 2-pole double throw pressure switch that has a 20 psi cut-in pressure and 40 psi cut-out pressure with a 13 to 30 psi differential range. The device features a manual reset lever which can be set to start, off or automatic operation. UL-listed and CSA-certified.

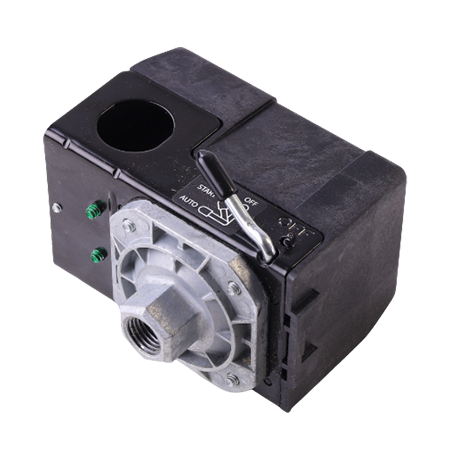

The pressure switch is suitable for water system applications. The unit's pressure can be adjusted by turning the steel screw clockwise to increase and counterclockwise to decrease pressure. The differential pressure can be adjusted the same way by turning the plastic screw.

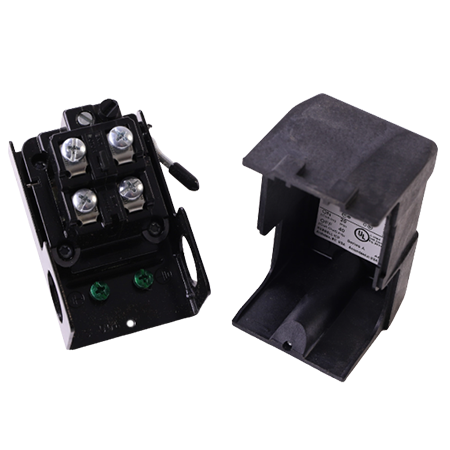

The 69WEC is easy to install with straight-through no loop wiring, quick-connect terminals, and a captive cover screw to keep the corrosion-resistant switch intact. Also available is the D00492001 grommet accessory D20909001 pulsation orifice replacement part.

Differential Pressure Range	13 to 30 psi
Maximum Open Cut-Out Pressure	70 psi
Minimum Close Cut-In Pressure	10 psi
Cut-Out Pressure	40 psi
Cut-In Pressure	20 psi
Conduit Connection	1/2"
Pipe Connection	1/4" FNPT

Download Product Information:

Siemens Industrial Controls (Furnas) Controls 69WEC Pressure Switch Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Pressure Switch Furnas 69WEC Water System. I Have read your catalog. I have following doubts, please clarify 1-Does it have low pressure protection cut-off ? 2-Does it have manual reset lever to re-start pump ? 3-Does it work in 220 V connection to motor starter? 4-Does it replace former 69GCC switch ? (discontinued) Please address all of these concerns only. I have other specs data already. Thanks ALEX

Asked on March 04, 2017 by ALEX from Miami FL

1 Answers

Have an answer? Click Here

All 69W Series Switches combine the functions of a standard pressure switch with protection against low pressure. They prevent the pump from starting whenever the systems falls considerably below cut-in pressure. Upon restoration of the water supply, a manual reset lever is depressed until a build up of system pressure permits automatic operation.

The Voltage rating is either 120V or 240V

The 69GCC does not show up in my database as a good number so I cannot tell whether the 69WEC is a suitable replacement.

Replied on March 05, 2017 by Ron from Industrial Stores

please confirm if former switch 69GCC for water pumping is now replaced by new number 69WEC with following specs: 220V 1 HP single phase 2 poles 13 amperes (motor) Pressure range 20 psi to 40 psi low pressure protection to motor. Cut in 10 psi manual lever to reset switch 1 / 4 female NPT fitting Please confirm specs and quote your price and shipping to Miami FL Thanks Alex Naranjo

Asked on March 03, 2017 by ALEX from Miami FL

1 Answers

Have an answer? Click Here

This product has the following specs:
1-Phase 120V 1.5Hp or 240V 2Hp
Factory pressure settings is 20-40 PSI
Min Close Out Cut-in 10 PSI
Max Open Cut-out 70 PSI
Differential Range is 13-30 PSI

Standard 2-Pole Double Throw

Replied on March 03, 2017 by Ron from Industrial Stores
