Smart Electric SC670 C-Frame Evaporator Fan Motor 1/130 Hp 120 V

Name: Smart Electric SC670 C-Frame Evaporator Fan Motor 1/130 Hp 120 V
Brand: Smart Electric
SKU: SC670
Price: 14.64 USD
Availability: OutOfStock
Rating: 5 (2 reviews)

Images for general purposes only. Actual may be different than depicted.

Smart Electric SC670 C-Frame Evaporator Fan Motor 1/130 Hp 120 V

SKU: SC670

Brand:

Rating: (2)

Quantity	Price	Stock
Usually Ships from Stock Usually Ships from Stock	$14.64 /ea	Usually Ships from Stock

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

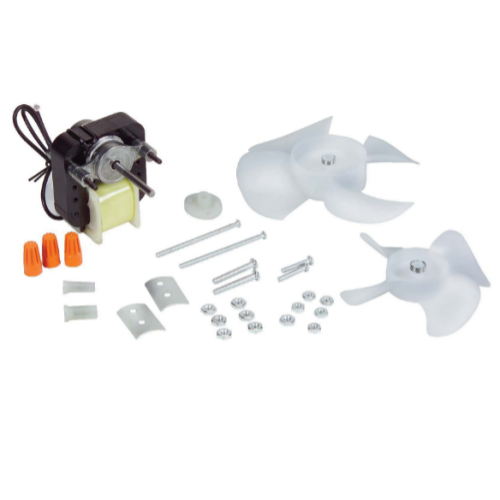

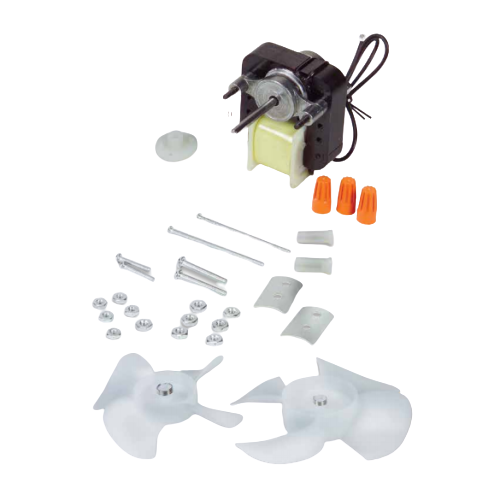

Smart Electric SC670 is a C-frame Evaporator Fan Motor used for electric unit heaters, evaporators, exhaust fans, range hoods, refrigerators, and walk-in coolers application. The fan motor includes a 4" CW fan blade, 5 1/2" CCW fan blade, hub adapter, mounting bracket, and 1-1/4" shaft adapter.

This motor is safe to use, UL and CSA recognized. It features a recirculating oil system, a mechanically reversible motor, and impedance protection.

Rotation Frequency	3000 RPM
Voltage	120V
Frequency	60 Hz
Ampere	0.41
Insulation	Class A
Horsepower	1/130 Hp
STAC	5/8"
Shaft	1.42" X 3/16"
Rotation	Clockwise/Counter Clockwise

Download Product Information:

Smart Electric C-Frame Evaporator Fan Motor Catalog

Write a Review

By Fernando

from

Yes, I would recommend this product to a friend or co-worker

5.0 Thank you

I couldn't find this part number anywhere. When I found it here, customer service was able to help me out with the shipping price. I was able to get my fridge working again! Thank you

By Sam's

from

Yes, I would recommend this product to a friend or co-worker

5.0
