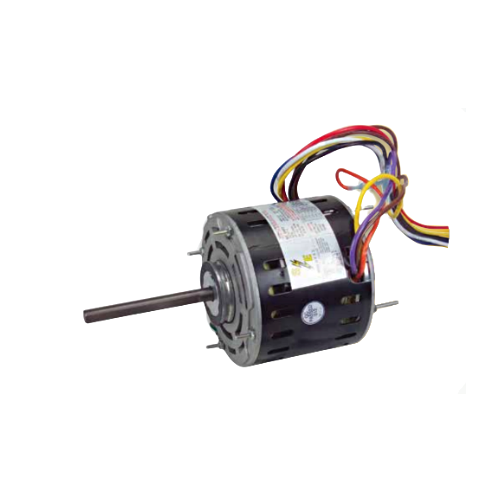

Smart Electric SE3467 is an open vent Multi Horse Power Direct Drive PSC Fan & Blower Motor. The motor features reversible rotation, sleeve bearing, continuous air over, thermal protection, and a semi-enclosed construction.
| PART NO. | HP | SPEED | CAP at 280V | AMPS | DIMENSIONS | ||

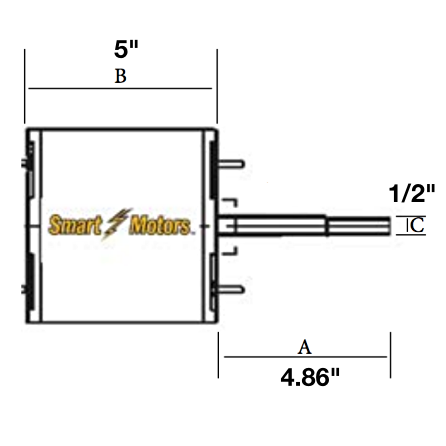

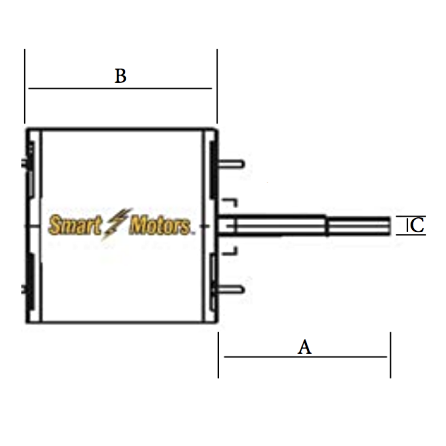

| SE3467 | 3/4 | ALL | 10 MFD | 3.9 | 4.86" | 5" | 1/2" |
| 1/2 | ALL | 10 MFD | 3.6 | ||||
| 1/3 | ALL | 5 MFD/7.5 | 3 | ||||
| 1/4 | L, ML, MH | 5 MFD/7.5 | 2.3 | ||||
| 1/5 | L, ML | 5 MFD/7.5 | 2 | ||||
| Motor Type | Open Vent |
|---|---|
| Bearing | Sleeve |
| Operating Temperature | 32°F - 104°F (0°C - 40°C) |
| Voltage | 208-230V |
| Rotation Frequency | 1075 rpm |
