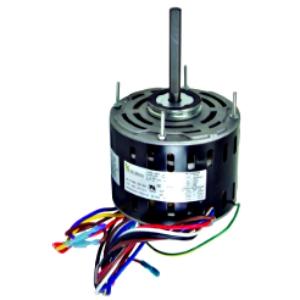

SMART ELECTRIC PSC MOTORS: Designed for use as direct drive furnace blower motors. Choose from three-speed or two-speed, standard efficiency models. All are electrically reversible and include 2 1/4" resilient rings for base mounting. Four (4) split rings included if 2 1/2" diameter required. Bases are sold separately.
FEATURES:
• 4" length, 1/2" diameter shaft
• 2 1/4" resilient rings, 4 split rings
• All angle sleeve bearings
• Reversible rotation
• 3 speeds
• 5 1/2" diameter
• 1/2" extended thru bolts
• Rheem mounting holes
SPECIFICATIONS:
• Automatic overload
• Operating temp -4°F - 104°F (-20°C - 60°C )
• Class B insulation
• 26" leads
• Single phase
• Enclosure–open air-over
• Thermal protection
| Insulation | Class B |
|---|---|
| Motor Type | Open Vent |
| Bearing | Sleeve |
| Operating Temperature | -4°F - 104°F (-20°C - 60°C ) |
| Voltage | 115V |
