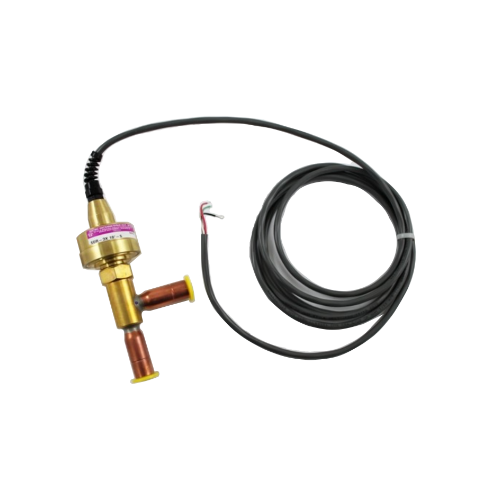

Sporlan Controls 930023 5/8 Electric Bypass Valve SDR-3X-10S

Sporlan Controls 930023 5/8 Electric Bypass Valve SDR-3X-10S
Images for general purposes only. Actual may be different than depicted.
Sporlan Controls 930023 5/8 Electric Bypass Valve SDR-3X-10S

Sporlan Controls 930023 5/8 Electric Bypass Valve SDR-3X-10S

SKU: 930023
Free Shipping over $199
Rating:
Quantity Price Stock
7
Usually Ships 1-2 Weeks
$767.72     /ea
7
Add to Cart
Add to Wishlist
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
930023
Sporlan Controls 930023 Electric Hoy Gas Bypass Valve has a 5/8" ODF connection. This model is an SDR-3X valve type.

Sporlan SDR Electric Discharge Bypass Valves are electronically controlled, stepper motor driven valves, designed specifically for precise control of discharge gas bypass applications. Featuring high-resolution actuator assemblies, these valves provide unmatched control capability across a wide range of applications and loads. These valves are most commonly paired with a Sporlan Pressure Control, Temperature Control, or Interface Board (IB).


Features/Benefits:


  • Direct temperature control
  • Tight shutoff when closed
  • Can be interfaced with direct digital controls or other building management systems
  • Functions as a standalone temperature control when used with a Sporlan TCB
  • Capacities up to 40 tons R-410A
  • Suitable for use with CFC, HCFC, and HFC refrigerants
  • Proven reliable step motor design
  • High force output for unparalleled reliability
  • Corrosion-resistant materials used throughout
  • Low power consumption – 4 Watts

Minimum Ambient Temperature -40 F
Minimum Fluid Temperature -40 F
Inlet Connection 5/8" ODF
Outlet Connection 5/8" ODF
Cable Length 10"
Motor 2 Phase Permanent Magnet , 2 Coil Bipolar
Phase Resistance 75 ohms per winding ± 10%
