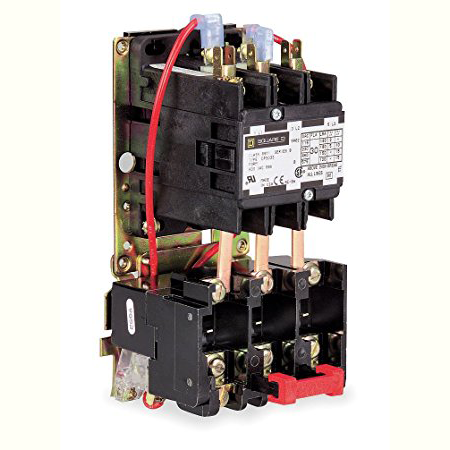

Square D Definite Purpose Control Starter
Class 8911 definite purpose starters are economical starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment.
Features:
| Line Rated Current | 50A |
|---|---|
| Horsepower Rating | 30 hp 460 VAC 3-phases; 30 hp 575 VAC 3-phases; 15 hp 230 VAC 3-phases; 3 hp 115 VAC 1-phase; 10 hp 230 VAC 1-phase |
| System Voltage | 600 VAC |
| Control Circuit Voltage | 110V 50Hz; 120V 60Hz |
| # of Phases | 3-Phase |
| # of Poles | 3-Pole |
| Range | DPS |
| Overload Type | Melting Alloy |
| Number of Thermal Units | 3 |
