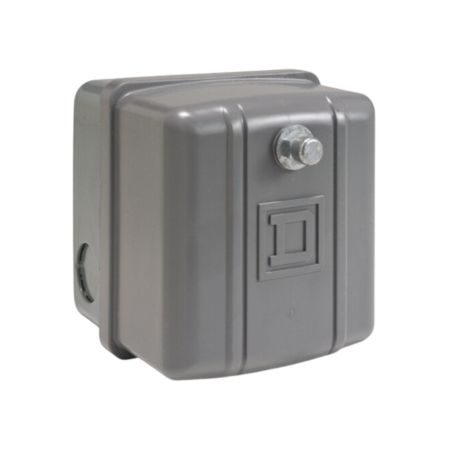

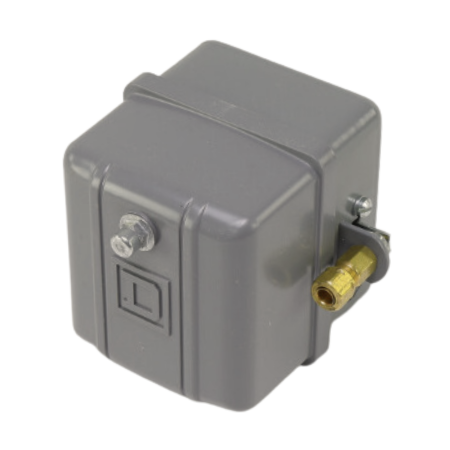

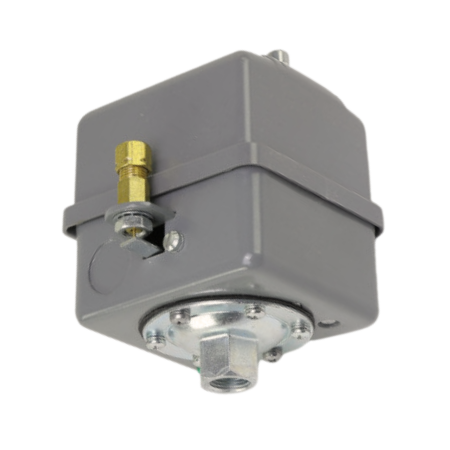

Square D 9013GHG3J62X Pressure Switch 3/8" NPSF 140 to 175 psi

Square D 9013GHG3J62X Pressure Switch 3/8" NPSF 140 to 175 psi
Images for general purposes only. Actual may be different than depicted.
Square D 9013GHG3J62X Pressure Switch 3/8" NPSF 140 to 175 psi Square D 9013GHG3J62X Pressure Switch Genuine Square D 9013GHG3J62X Pressure Switch

Square D 9013GHG3J62X Pressure Switch 3/8" NPSF 140 to 175 psi

SKU: 9013GHG3J62X
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Weeks
Usually Ships 2 - 4 Weeks
$278.08     /ea
Usually Ships 2 - 4 Weeks

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge*

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge

0
$0.00
0
$0.00
0
9013GHG3J62X
The Square D 9013GHG3J62X is a diaphragm-actuated pressure switch with a 3/8" NPSF fluid connection and 140 to 175 psi on/off setting.  UL and CSA Listed.

The switch features a 2-way pressure release valve, contacts that open on rising pressure, and an adjustable screw nut switching point.

The 9013GHG3J62X is suitable for electrically controlled air compressors and water pumps.  It must be mounted in a vertical position.

Check the data sheet for complete specification details on the Technical Data tab.
Enclosure Rating NEMA 1
Pressure Actuator Diaphragm
Scale Type Adjustable Differential
Controller Type Mechanical Knob
Factory On/Off Setting 140 to 175 psi
Pressure Sensor Size 200 psi
Adjustable Range on Rising Pressure 65 to 200 psi (448.16 to 1378.95 kPa)
Approximate Adjustable Differential 20 to 40 psi (137.90 to 275.79 kPa)
Controlled Fluid 32 to 158°F (-0 to 70°C)
Contact Type DPST
