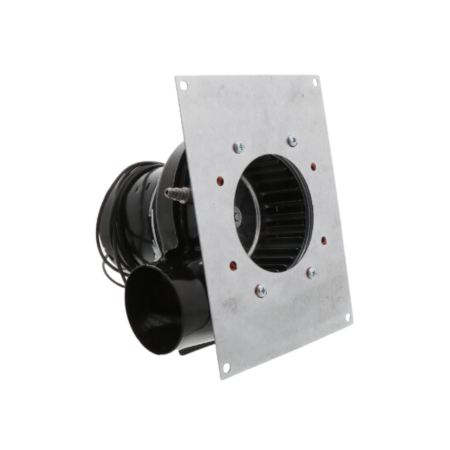

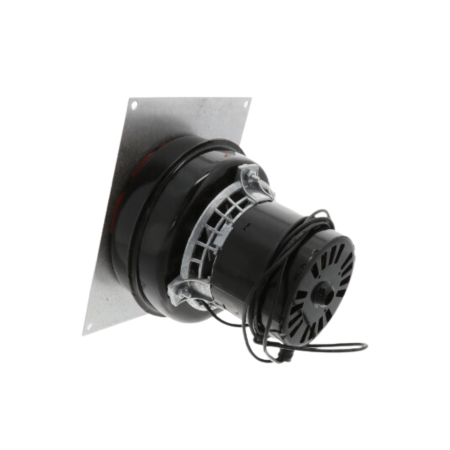

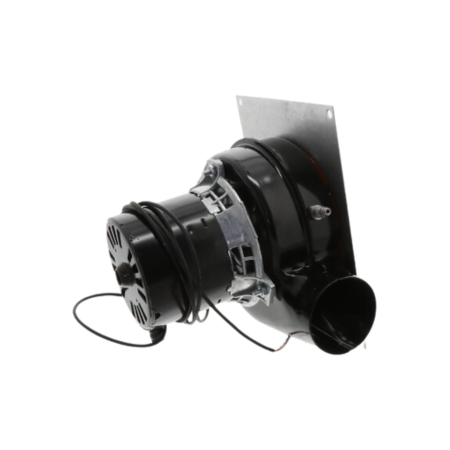

The Sterling HVAC 11J35R04700 is a draft inducer (power venter) assembly that operates at 115V, 1/85 Hp, and 50/60 Hz power ratings. The motor shaft rotates at 3000 RPM in a clockwise direction.
The draft inducer assembly consists of a fan, motor, and exhaust outlet. This device safely pulls out combustion gases produced by furnaces. This also creates a draft that distributes air throughout the building.
The 11J35R04700 is similar to ICP, Carrier, Dayton, Fasco, Grainger, Beacon Morris, and Heil Quaker power centers. Suitable for use in furnaces and air handlers.
| Rotation Speed | 3000 RPM |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 115V |
| Rotation Direction | Clockwise |
| Horsepower | 1/85 Hp |
