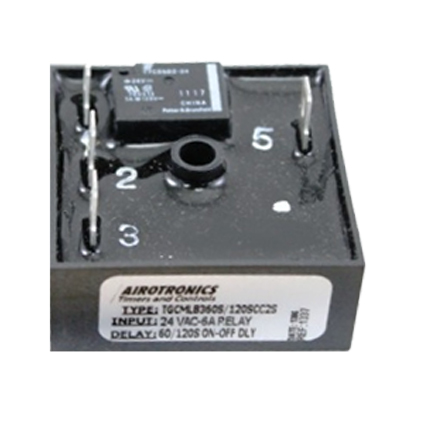

The Sterling HVAC J10R03864 Fan Time Delay is a 24 volt, 6 amp relay with a 60-second/120-second On-Off Delay. These cube relay timers are a unique combination of resistor-capacitor timing with a 12am relay output in a 2" x 2" configuration without heat sinking. Power is continuously applied to input voltage terminals. Upon closure of a normally open (N.O.) external initiate switch, the “On” delay time begins. If the switch remains closed for the full time, the load energizes. The load remains energized until the initiate switch is opened, which begins the “Off” delay time. If the switch remains open for the full time, the load de-energizes.
Features:
High current-carrying capacity up to 12 amps
100% Load isolation
No leakage in “Off” state
No heat sinking required
Available in time delay periods up to 300 seconds
Insensitive to thermostat anticipator leakage
Transient protected
No minimum load required
Totally encapsulated for protection from harsh environments
