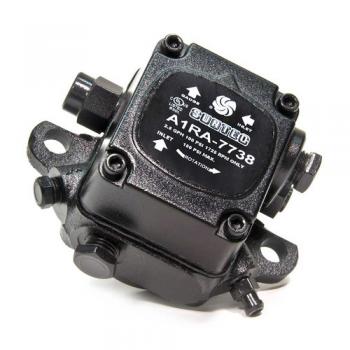

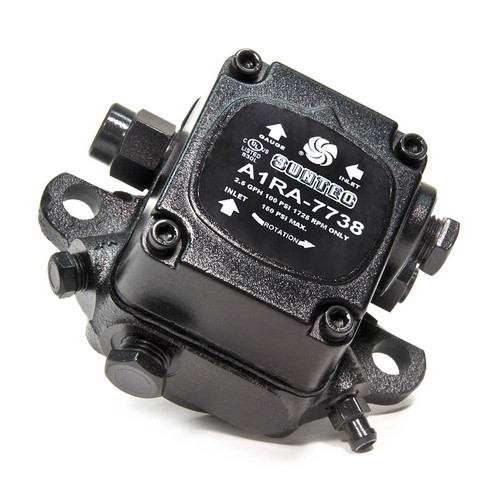

Suntec A1RA7738 Single Stage Oil Pump (1725 RPM)

Suntec A1RA7738 Single Stage Oil Pump (1725 RPM)
Images for general purposes only. Actual may be different than depicted.
Suntec A1RA7738 Single Stage Oil Pump (1725 RPM)

Suntec A1RA7738 Single Stage Oil Pump (1725 RPM)

SKU: A1RA7738
Rating:
Quantity Price Stock
17
Usually Ships 2 - 5 Days
$178.55     /ea
17
0
$0.00
0
$0.00
0
A1RA7738

Suntec A1RA Series Oil Pump

The Suntec A1RA7738 is one of the most popular oil pumps in the industry.
The A1RA-7738 oil pump draws the fuel from the tank to through the built-in strainer and transfers it to the valve that regulates the fuel pressure to the nozzle line. All the fuel which does not go through the nozzle line will be by-passed through the seal chamber and then back to the inlet.

Features:

  • Fuels : Suitable for Kerosene, No. 1 or No. 2 Fuel Oil
  • RPM : 1725
  • Rotation : R. H.
  • Nozzle Port Location : R. H.
  • Strainer & Nozzle Rating at 100 psi : 2.5 gph
  • Special Features : Waste oil application
  • Image shown is not this exact model
  • Bleed : The easy flow bleeder valve must be loosened to bleed the system.
  • Installation : This unit is supplied for 1-pipe operation only
Fuel Waste oil or #4 and lighter fuel
Shaft rotation and nozzle location (from shaft end) RH rotation, RH nozzle
Gear type 1 Stage
Certification UL and ULc
Motor speed 1725 RPM

Download Product Information:

A1RA7738 Technical Data
