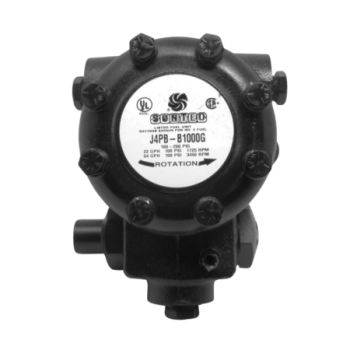

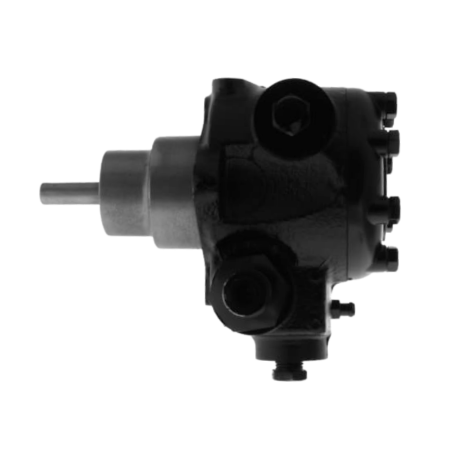

The Suntec J4PBB10008M is a single-stage fuel oil pump designed for efficient and reliable operation in various heating applications. It operates at speeds of 1725 or 3450 RPM, delivering flow rates of 12 to 44 gallons per hour (GPH) at pressures ranging from 100 to 200 psi. The pump is suitable for both single-pipe and two-pipe installations, accommodating lift or gravity feed systems, and is compatible with No. 4 and lighter fuel oils.
Constructed with a durable cast iron housing, the J4PBB10008M ensures longevity and resistance to wear. Its precision-machined gears contribute to smooth and quiet operation. The pump features a clockwise rotation and includes left-hand nozzle ports, providing flexibility in installation. Standard 1/4" inlet and return, with 1/8" nozzle outlet and pressure gauge port sizes facilitate straightforward integration into existing systems.
The backward compatibility simplifies upgrades and maintenance, ensuring seamless integration into systems previously utilizing these models.
The J4PBB10008M replaces the following models:
| J4PB-B1000G J2BB100 J2BC100 J3BB100 J3BB200 J2CB100 J4PB100 J4CBB1000 H2BB100 H3BB100 H3BB200 |
H3BB300 H3PBB100 H5PB100 HA2BB100 H2PB100-4 J4CBB-1000 H3DB1022A H3PB100 J3CB100 HA2BB300 |
| Rotation Speed | 1725/3450 RPM |
|---|---|
| Flow Capacity | 12/24 GPH |
| Pressure Range | 100 to 200 psi |
| Maximum Inlet Presure | 10 psi |
| Media | Fuel oil #4 and lighter |
| Inlet and Return Size | 1/4 NPTF |
| Nozzle Outlet Size | 1/8 NPTF |
| Pressure Gauge Port Size | 1/8 NPSF |
| Vacuum Gauge Port Size | 1/4 NPTF |
| Approvals | UL-listed and CE-marked |
