Suntec J4PCC10008M Oil Pump Left Hand Rotation 1725/3450 rpm

Name: Suntec J4PCC10008M Oil Pump Left Hand Rotation 1725/3450 rpm
Brand: Suntec Industries
SKU: J4PCC10008M
Price: 394.56 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Suntec J4PCC10008M Oil Pump Left Hand Rotation 1725/3450 rpm

SKU: J4PCC10008M

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 3 - 10 Business Days Usually Ships 3 - 10 Business Days	$394.56 /ea	Usually Ships 3 - 10 Business Days

Add to Cart

Add to Wishlist

The J4PCC10008M found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Suntec J4PC-C1000G Single Stage 1725/3450RPM G Oil Pump	J4PC-C1000G Brand Suntec Industries

Add to Cart

Add to Wishlist

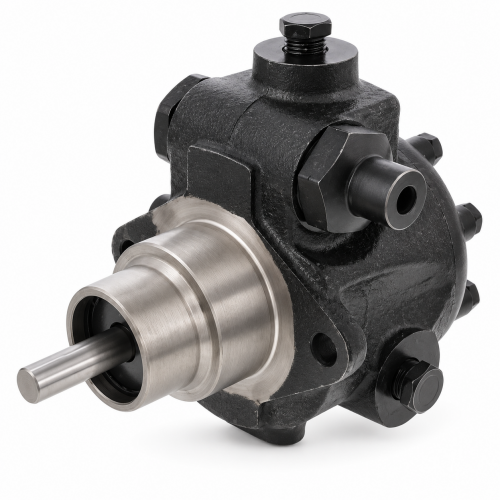

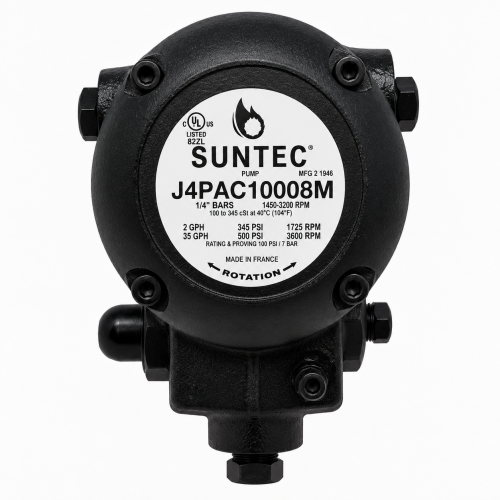

The Suntec J4PCC10008M Oil Pump is a single-stage, high-pressure fuel oil pump designed for oil-fired heating systems and commercial oil burner applications. Operating at 1725 or 3450 RPM, this Type J pump delivers controlled fuel oil pressure from 150 to 300 PSI, supporting consistent fuel delivery and accurate burner operation.

Featuring counterclockwise (left-hand) shaft rotation, a left-hand nozzle outlet, and a 7/16-inch drive shaft, the Suntec J4PCC10008M is engineered for installations requiring precise rotational alignment and dependable fuel distribution. Its hub-mount configuration and standard internal strainer make it suitable for servicing and replacing compatible oil burner fuel units.

The pump supports single-pipe and two-pipe fuel oil systems, offering installation flexibility for different heating equipment configurations. At 300 PSI, its maximum No. 2 fuel oil nozzle flow capacity is 2 GPH at 1725 RPM and 35 GPH at 3450 RPM, providing performance options for varying burner requirements.

The J4PCC10008M holds UL certification and replaces part numbers H3BC-C200H, H4PC-C200H, J3CD-100, H3PC-C200H, and J4PC-C1000G.

Features:

Adjustable operating pressure range of 150–300 PSI for oil burner fuel delivery.
Designed to operate at 1725 or 3450 rpm
Counterclockwise (left-hand) shaft rotation with a left hand nozzle connection.
Includes standard internal strainer helping screen particles from the incoming fuel oil supply.
Type J fuel oil pump configuration for oil-fired heating applications.

Frequently Asked Questions:

What is the J4PCC10008M oil pump used for?
The J4PCC10008M is a single-stage, high-pressure fuel oil pump designed for commercial oil burners and oil-fired heating systems. It delivers pressurized fuel oil to the burner nozzle for proper atomization and combustion.
Is the J4PCC10008M oil pump UL Listed?
Yes. The J4PCC10008M complies with UL safety requirements.
What is the maximum operating pressure of the J4PCC10008M?
The oil pump operates within an adjustable pressure range of 150 to 300 PSI, making it suitable for compatible high-pressure oil burner applications.
What is the rotation direction of the J4PCC10008M?
It features counterclockwise (left-hand) shaft rotation and a left-hand nozzle configuration. Correct rotation is essential for proper installation and burner compatibility.
Can the J4PCC10008M operate at 1725 and 3450 RPM?
Yes. The pump supports both 1725 and 3450 RPM operating speeds, with specified nozzle flow capacities of 2 GPH and 35 GPH, respectively, at 300 PSI.
What oil pumps can the J4PCC10008M replace?
The J4PCC10008M replaces H3BC-C200H, H4PC-C200H, J3CD-100, H3PC-C200H, and J4PC-C1000G. Compatibility must be verified against the original pump's pressure, rotation, mounting, and connection specifications.
Can the J4PCC10008M be used in single-pipe and two-pipe systems?
Yes. It supports properly configured single-pipe and two-pipe fuel oil systems. Two-pipe installations require the appropriate bypass plug configuration.

Type	Single-Stage
Rotation Direction	Counterclockwise (Left Hand)
Nozzle Configuration	Left-Hand Nozzle
Operatin Speed	1725/3450 rpm
Pressure Range	150 - 300 psi
Maximum Operating Pressure	300 psi
Flow Rate at 300 PSI	2 GPH at 1725 RPM / 35 GPH at 3450 RPM
Mounting Type	Hub Mount
Application	Oil-Fired Heating Systems, Commercial Oil Burners
Approval	UL Listed

Download Product Information:

Suntec J4PCC10008M Oil Pump Installation Instructions

Suntec Fuel Units Product Catalog
