Suntec J6PA-C1000G Single Stage 1725/3450 RPM Pump

Suntec J6PA-C1000G Single Stage 1725/3450 RPM Pump
Images for general purposes only. Actual may be different than depicted.
Suntec J6PA-C1000G Single Stage 1725/3450 RPM Pump Suntec J6 Series Single Stage Fuel Unit Parts Illustration

Suntec J6PA-C1000G Single Stage 1725/3450 RPM Pump

SKU: J6PA-C1000G
In Stock 8
Rating:
$246.11 /ea
0
$0.00
0
$0.00
0
Suntec J6PA-C1000G is a Single Stage Rotary Oil Pump with inlet port and a return port of 1/4 NPTF. The Rated Nozzle Flow is 17 GPH at 300 psi in 1725 rpm (#2 fuel oil), 63 GPH at 300 psi in 3450 rpm (#2 fuel oil).

Suntec Model J Series pumps are designed for single pipe gravity feed installations, two pipe lift installations to 12" hg vacuum, lift or gravity feed applications with 10 psi maximum inlet/return pressure.  The Model J works for capacities up to 60 gph and there are six pressure options ranging from 10 to 300 psi. Only used for #4 or lighter fuel oils (gasoline and JP fuels).

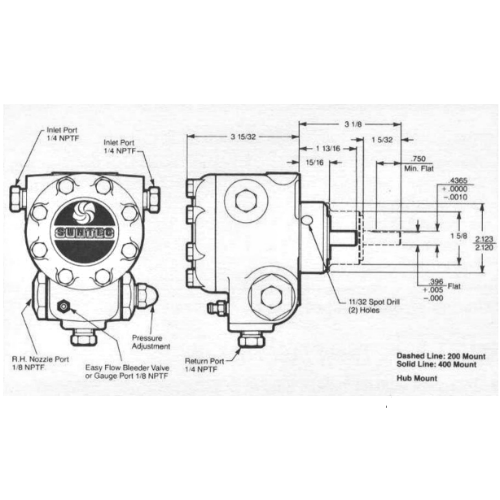

Suntect Model J Single Stage Fuel Unit Parts Illustration:
Factory Pressure Setting 150 PSI
Nozzle Pressure Range 150-300 PSI
Piston Type Standard
Oil Temperature 50 - 115 F
Inlet/ReturnPressure 10 PSI MAX
Flow Rate (GPH) 17/63
