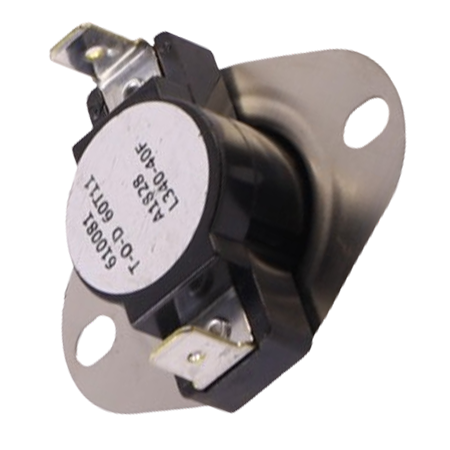

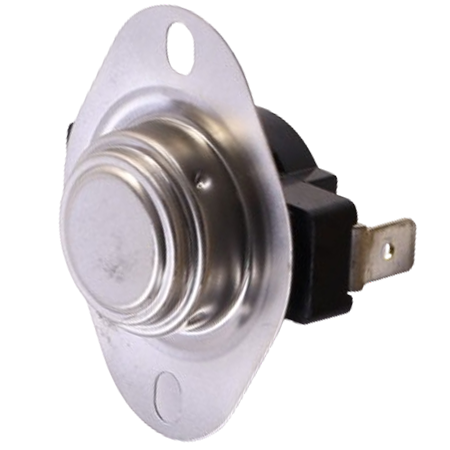

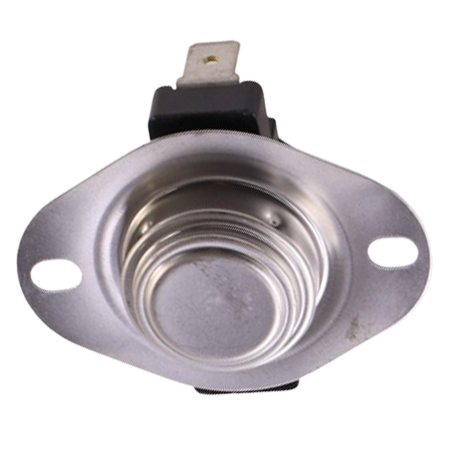

The L340 (60T11-610081) is a limit switch with a cut-in temperature of 300°F and a cut-out temperature of 340°F. It features a 40°F differential and welded construction with ratings of 10A at 120VAC & 5A at 240VAC, it can handle loads up to 25 amps at 240VAC. This limit switch is UL and CSA-certified.
The limit switch is designed for fan and limit applications, domestic dryers, and other single pole-single throw configurations. It provides reliable operation by opening and closing as temperature thresholds are reached, protecting equipment and maintaining safe operation.
The L340 (60T11-610081) is easy to install with its 3/4" bimetal disc design and 1/4" quick disconnect terminals. This replaces Nordyne 626194R limit switch.
| RLA @ 120VAC / 240VAC | 25A |
|---|---|
| Pilot Duty @ 120VAC / 240VAC | 125 VA |
| FLA at 240 VAC | 5A and 30A |
| FLA at 120 VAC | 10A and 60A |
| Differential Temperature | 40°F |
| Cut-out Temperature | 340°F |
| Cut-In Temperature | 300°F |
| Bimetal Disc Size | 3/4" (19mm) |
| Approvals | UL-recognized and CSA-certified |
| Quick Disconnect Terminals | 1/4" |
Download Product Information:
Supco L340 Limit Switch Installation Instructions
