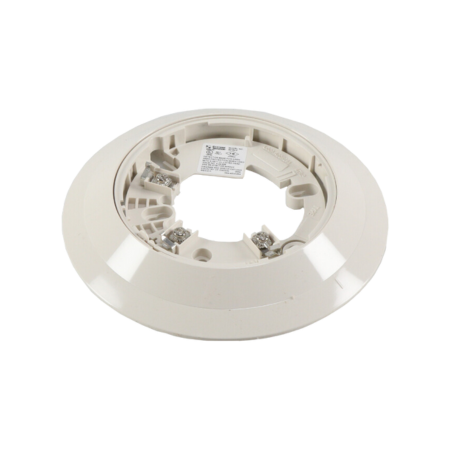

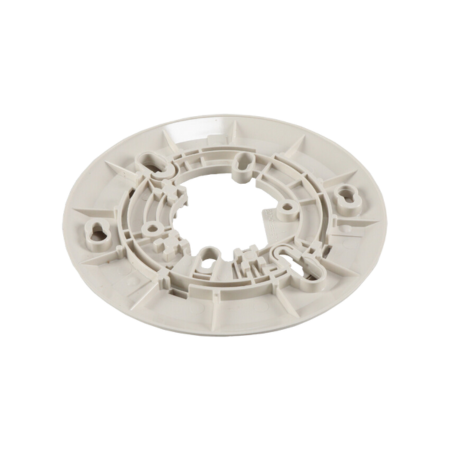

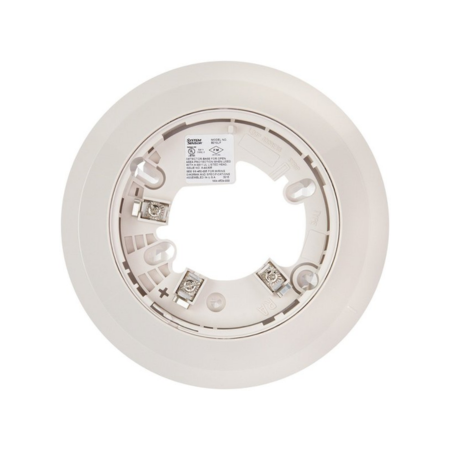

The System Sensor B210LP is a plug-in detector base with a 6” flange. UL Listed and FM Approved.
Features:
The B210LP is suitable for use in a 2-wire intelligent smoke detector.
Compatible for use with the following plug-in detector heads series:
| 1251B 2251T 5251F 5951R ATD-HL FSI-851 NI-100 |
1251F 2951A 5251H AD355 ATD-L2F FSL-751 NP-100 TC808B |
1951A 2951J 5251R ASD-IL ATD-RL2F FSP-851 NP-A100 TC840C |
1951J 2951M 5951A ASD-LS CP355 FST-851 SD355 TC840M |
2251B 2951T 5951H ASD-PL FAPT-851 LPX-751 TC806B TC846A |
2251F 5251B 5951J ASD-PTL FSC-851 NH-100 TC807B |
| Base Height | .76 inches (19 mm) |
|---|---|
| Standby Current | 170 µA |
| Base Diameter | 6.1 inches (155 mm) |
| Operating Voltage | 15 to 32 VDC |
| Mounting Type | Ceiling Mounted |
| Color | Ivory |
| Approvals | UL Listed and FM Approved |
Download Product Information:
System Sensor 200 Series Mounting Base Data Sheet
System Sensor B210LP Plug-in Detector Base Installation Guide
