Performance Data
Flow Range: 0-23 GPM
Head Range: 0-10 Feet
Minimum Fluid Temperature: 40º F (4º C)
Maximum Fluid Temperature, Cast Iron: 240º F (115º C)
Maximum Fluid Temperature, Stainless Steel: 230º F (110º C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4”, 1”, 1-1/4”, 1-1/2” Flanged

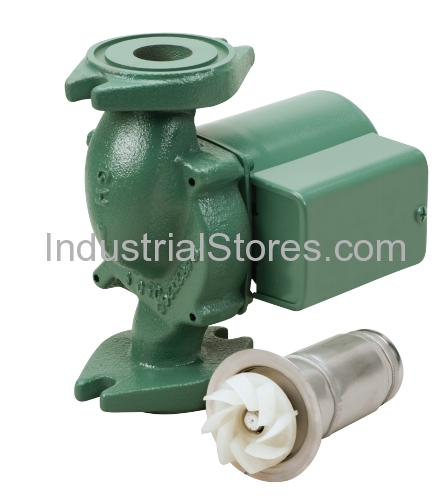

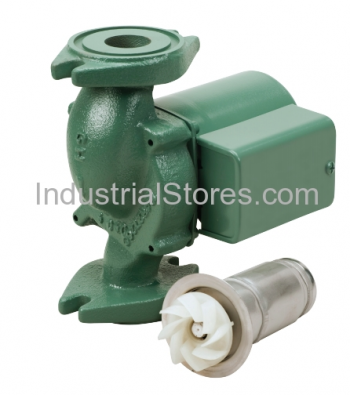

The Taco 007 Cartridge Circulator is designed for quiet operation in a wide range of applications.


• Available in cast iron or stainless steel construction with universal flange-to-flange dimensions.
• Unique, “00” family  replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.

Features

• Standard High Capacity Output
• Compact Design
• Quiet, Efficient Operation
• Unique Replaceable Cartridge Design – Field Serviceable
• Direct Drive-Low Power Consumption
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability --Maintenance Free
• Universal Flange-to-Flange Dimensions
• Cast Iron or Stainless Steel Construction

Typical Applications

• Hydronic Heating
• Radiant Heating
• Hydro-Air Fan Coils
• Indirect Water Heating
• Chilled Water Cooling
• Domestic Water Systems
