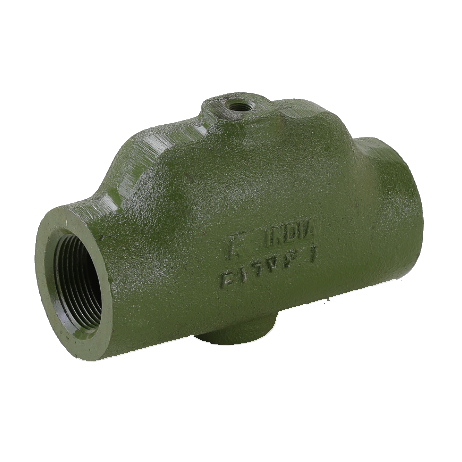

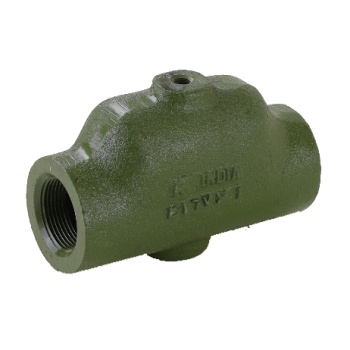

Taco 432-6 Air Scoop 1-1/4"

Name: Taco 432-6 Air Scoop 1-1/4"
Brand: Taco
SKU: 432-6
Price: 51.94 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Taco 432-6 Air Scoop 1-1/4"

SKU: 432-6

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 2-3 Weeks	$51.94 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Taco Air Scoop 1.25"

Taco Air Scoops help with the removal of air in a hydronic system by reducing the velocity of water into the piping which then creates air bubbles that can be "scooped" an diverted and eliminated. As the air and water enter the Air Scoop their velocity decreases, permitting the air bubbles to be scooped up by the baffle and directed to the top of the chamber. Reaching the top of the air scoop they are either immediately vented through a Hy-Vent or directed into a conventional plain steel expansion tank.

Features:

One Piece Cast Iron Construction
Engineered Baffle to Separate Air from Water
Never Requires any Servicing

Maximum Operating Pressure	125 PSI (862 kPa)
Maximum Operating Temperature	300F (135C)
Media	Water or Water/Glycol
Recommended Flow Rate	4ft per second
Maximum Flow Rate	8ft per second

Download Product Information:

Taco Air Scoop Catalog Page
