Suggested Division 15 Specifications
300 Series

Aluminum Supply Grilles

Model Description:

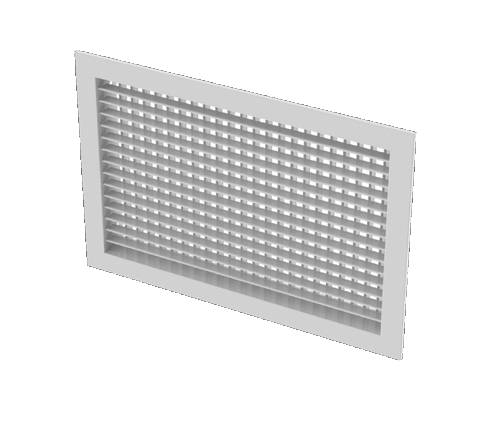

300FS

Aluminum supply grilles shall be TITUS Model 300F (double deflection) of the sizes and mounting types shown on the plans and outlet schedule. The deflection blades shall be available parallel to the short dimension of the grille or register. Construction shall be of aluminum with a 1¼-inch wide border on all sides. Sizes 24 x 24 inches and below shall have roll-formed borders with a minimum thickness of 0.032 inch. Larger sizes shall be constructed using continuous aluminum extrusions with a nominal thickness of 0.040 through 0.050 inch and shall be interlocked at the four corners and mechanically staked to form a rigid frame. Screw holes shall be countersunk for a neat appearance.

Deflection blades shall be contoured to a specifically designed and tested cross-section to meet published test performance data. Blades shall be spaced on ¾-inch centers. Blades shall have friction pivots on both sides to allow individual blade adjustment without loosening or rattling or be inserted through the frame and held tight with steel friction wire interlocked to the frame on both ends of each side.  Plastic blade pivots are not acceptable.

Optional opposed blade volume damper shall be constructed of heavy gauge steel or aluminum. Damper must be operable from the face of the grille.

The grille finish shall be #26 white.  The finish shall be an anodic acrylic paint, baked at 315° F for 30 minutes.  The pencil hardness must be HB to H.  The paint must pass a 100-hour ASTM B117 Corrosive Environments Salt Spray Test without creepage, blistering or deterioration of film. The paint must pass a 250-hour ASTM D870 Water Immersion Test. The paint must also pass the ASTM D2794 Reverse Impact Cracking Test with a 50-inch pound force applied.

The manufacturer shall provide published performance data for the grille. The grille shall be tested in accordance with ANSI/ASHRAE Standard 70-1991.
