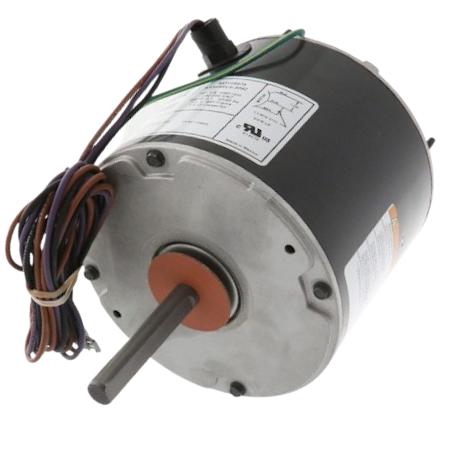

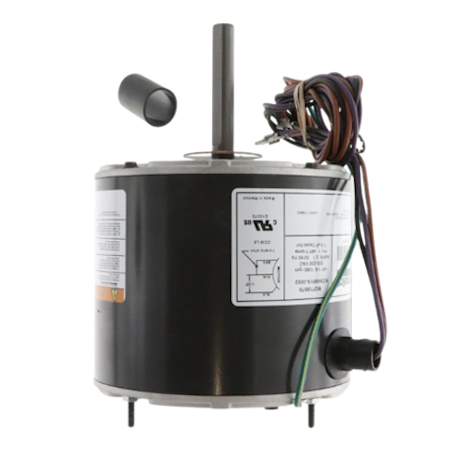

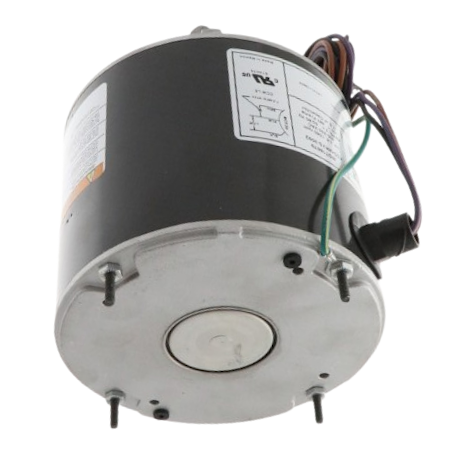

The Trane MOT18679 is a single-phase condenser motor designed for reliable use in HVAC systems. It operates at 200–230V and has a 1/5 HP rating. The motor runs at 1080 RPM in a counterclockwise lead end (CCWLE) direction.
This motor has a 48-frame size and a totally enclosed air-over (TEAO) design, which provides protection and dependable airflow control. It is suitable for both residential and light-commercial applications.
The MOT18679 is built with durable bearings and F-class insulation, giving it strength and resistance in demanding environments. For proper operation, a 7.5 MFD/370 VAC capacitor may be required during installation.
The MOT18679 replaces part numbers
MOT4104, MOT10331, and MOT6613.
| Frequency | 50/60 Hz |
|---|---|
| Amperage | 2.1A |
| Frame Size | 48Y |
| Rotation Speed | 1080 RPM |
| Horsepower | 1/5 HP |
| Voltage | 200-230V |
| Approvals | UL-recognized |
| Rotation | Counterclockwise |
| Insulation | Class F |
