Trane MOT18819 Condenser Fan Motor 1-Phase 208-230V 1Hp 50/60 Hz 1125 RPM 48 Frame

Name: Trane MOT18819 Condenser Fan Motor 1-Phase 208-230V 1Hp 50/60 Hz 1125 RPM 48 Frame
Brand: Trane
SKU: MOT18819
Price: 723.70 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Trane MOT18819 Condenser Fan Motor 1-Phase 208-230V 1Hp 50/60 Hz 1125 RPM 48 Frame

SKU: MOT18819

UNSPSC: 26101400

Brand:

Rating:

Quantity	Price	Stock
91 Usually Ships 2 - 4 Weeks	$723.70 /ea	91

Add to Cart

Add to Wishlist

The MOT18819 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane MOT6764 Motor 1.1 HP 208-230V 1140RPM	MOT6764 Brand Trane

Add to Cart

Add to Wishlist

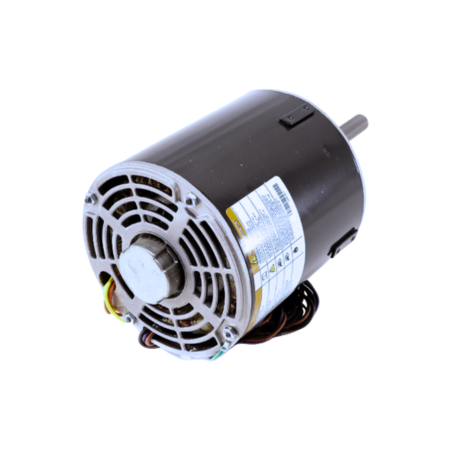

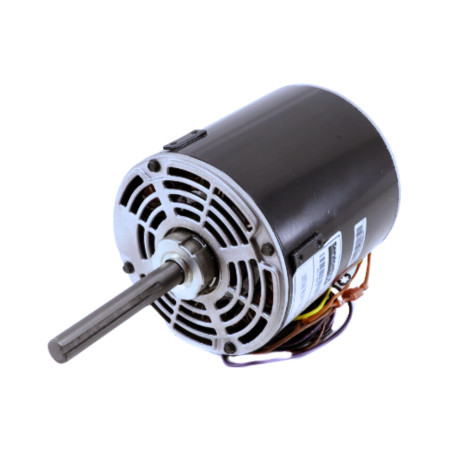

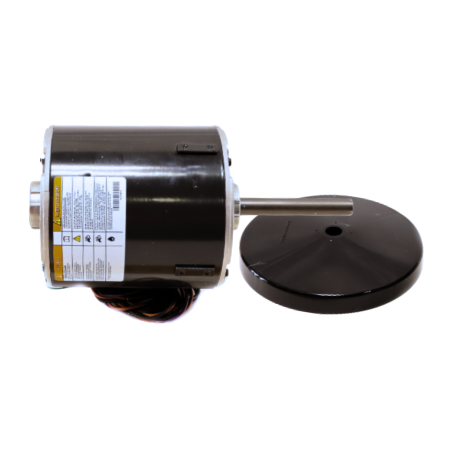

The Trane MOT18819 is a single-phase condenser fan motor with a 48 frame size, operating at 1Hp, 208-230V, and 50/60 Hz. It features a 1-speed shaft that rotates at 1125 RPM in both clockwise and counterclockwise directions.

This component powers the condenser fan, which helps remove heat from the refrigerant during the cooling cycle. Maintaining proper airflow across the condenser coil ensures efficient heat exchange.

The MOT18819 directly replaces for MOT6764, MOT9188, MOT9376, MOT9377, and MOT18725 motor. It is compatible with TCD Series packaged units and YCD Series air conditioners.

Note: It uses a 25.0 MFD/370 VAC capacitor purchased separately.

Horsepower	1Hp
Frequency	50/60 Hz
Voltage	208-230V
Number of Phase	Single-Phase
Rotation Speed	1125 RPM
Rotation Direction	CW / CCW
Motor Speed	1-Speed
Frame Size	48 Frame
Applications	Packaged Unit / Air Conditioner
Compatible Series	TCD and YCD Series
