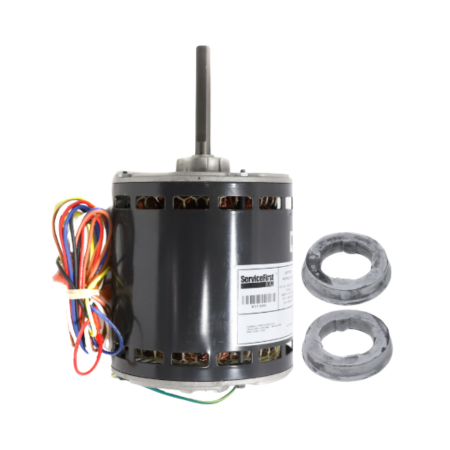

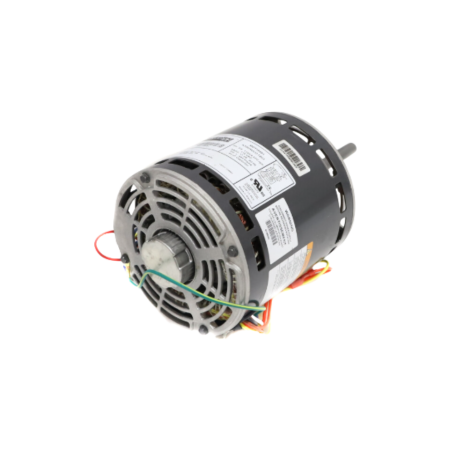

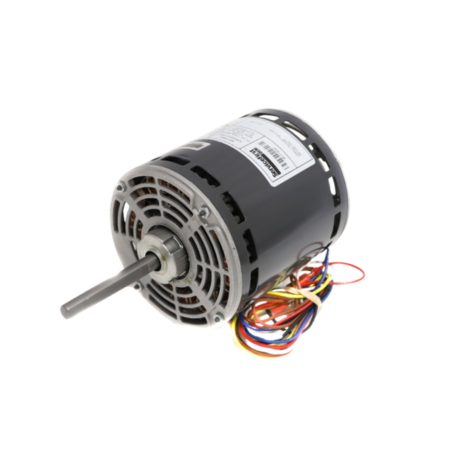

Trane MOT18981 Motor 1-Phase 3/4 HP 115V 60 Hz 1100 RPM 4-Speed CCWLE

Name: Trane MOT18981 Motor 1-Phase 3/4 HP 115V 60 Hz 1100 RPM 4-Speed CCWLE
Brand: Trane
SKU: MOT18981
Price: 954.11 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Trane MOT18981 Motor 1-Phase 3/4 HP 115V 60 Hz 1100 RPM 4-Speed CCWLE

SKU: MOT18981

UNSPSC: 26101400

Brand:

Rating:

Quantity	Price	Stock
6 Usually Ships 2 - 4 Weeks	$954.11 /ea	6

Add to Cart

Add to Wishlist

The MOT18981 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane MOT4723 Motor 3/4 HP 115V 1100RPM	MOT4723 Brand Trane

Add to Cart

Add to Wishlist

The Trane MOT18981 is a single-phase, permanent split capacitor (PSC) direct-drive motor with 3/4 HP, 115V, and 60 Hz power ratings. UL Recognized for safety compliance.

This motor runs at 1100 RPM in a counterclockwise (lead end) rotation with 4-speed capability. It features a 48-frame design, sleeve or self-aligning bearings, and an open air over (OAO) enclosure for reliable performance.

A direct replacement for the MOT4723 motor, and is compatible with American Standard and Trane furnaces, suitable for horizontal mounting. Built with a thermal protector, designed to withstand 50°F to 120°F ambient temperature.

Note: A new capacitor may be required; replace with a 30 MFD 370 VAC capacitor (RNG02600 included).

Approval	UL
Motor Type	PSC
Voltage	115V
Frame Size	48
Number of Phase	Single-Phase
Horsepower	3/4 HP
Frequency	60 Hz
Rotation Speed	1100 RPM
Rotation Direction	Counterclockwise (CCW)
Motor Type	Permanent Split Capacitor (PSC)
