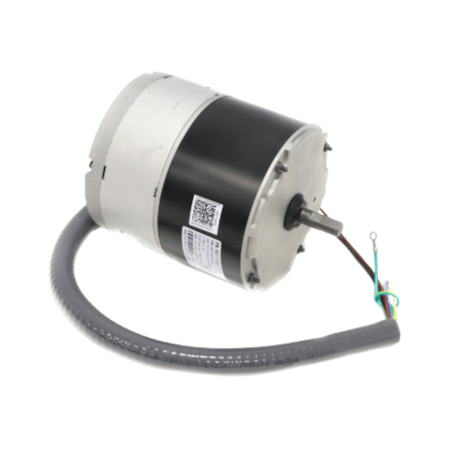

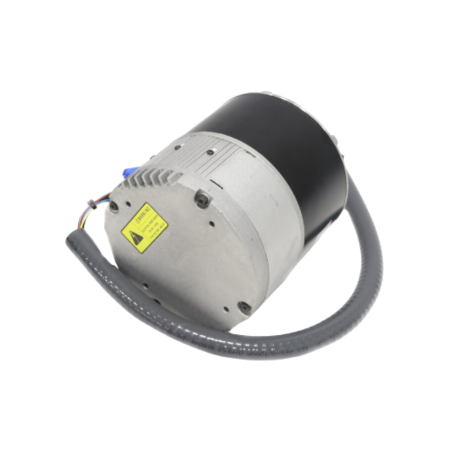

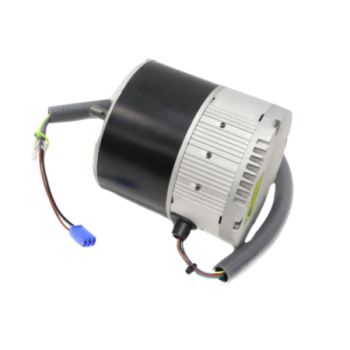

The Trane MOT19352 is a single-phase ECM variable-speed motor rated at 2.8A, 1/3 HP, 208–230V, and 50/60 Hz. It is UL Recognized, ensuring compliance with safety standards.
This motor operates at a speed range of 200–1200 RPM with a counterclockwise rotation (CCWLE) in a single-speed configuration. It features a totally enclosed air-over (TEAO) design, a 48-frame, and Class B insulation, making it suitable for continuous air-over applications.
The MOT19352 directly replaces the Trane MOT16196 motor, ideal for system upgrades or maintenance replacements. Mounting is supported via a screw-type vertical shaft-down configuration.
Check out the following compatible air conditioner model numbers:
| 4TWV0X36A1000AA 4A7V0X36A1000AA 4A7V0X61A1000AA 4TTV8X48A1000AA 4TTV8X60A1000AA |
4A6V0X48A1000AA 4A6V8X60A1000AA 4TTV0X61A1000AA 4A7V0X60A1000AA 4TWV0X48A1000AA 4TWV8X60A1000AA |
4A7V8X60A1000AA 4TTV0X48A1000AA 4A6V0X36A1000AA 4TTV0X60A1000AA 4TTV0X36A1000AA 4TWV8X48A1000AA |
4A6V8X48A1000AA 4A6V0X60A1000AA 4A7V8X48A1000AA 4A7V0X48A1000AA 4TWV0X60A1000AA |
| Horsepower | 1/3Hp |
|---|---|
| Voltage | 208-230V |
| Frequency | 50/60 Hz |
| Number of Phase | Single-Phase |
| Rotation Speed | 200-1200 RPM |
| Rotation Direction | CCWLE |
| Motor Speed | 1-Speed |
| Motor Type | ECM |
| Frame Size | 48-Frame |
| Enclosure Type | TEAO |
