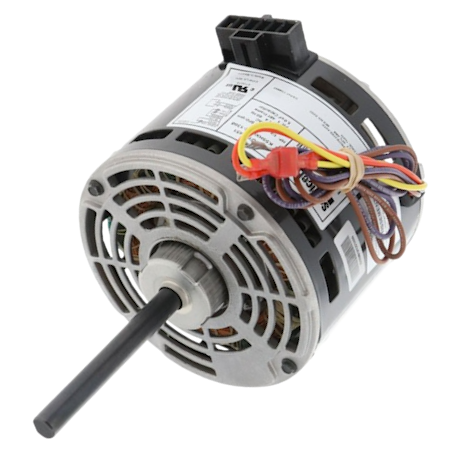

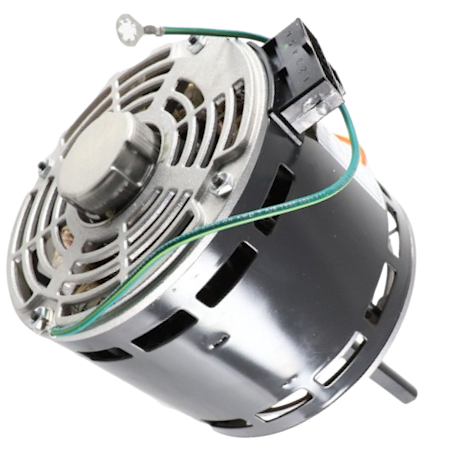

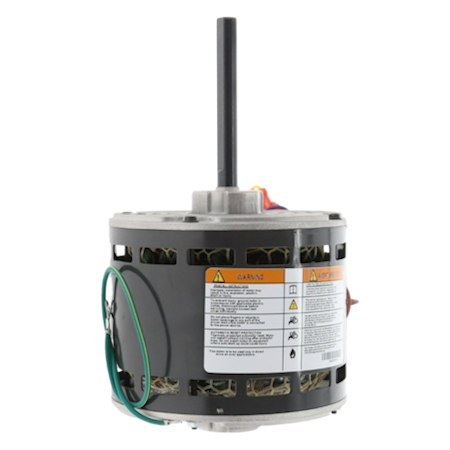

The Trane MOT19451 is a motor that delivers 1/4 HP of power and runs on 230V, single-phase electricity at 60 Hz. It operates at 1095 RPM with 2-speed settings and offers both clockwise (CW) and counterclockwise (CCW) rotation. Built with a strong steel frame and aluminum flange, it is durable, resistant to rust.
The motor is designed as a direct-drive design with an open-air enclosure and a 48Y frame compact enough to fit in smaller spaces. It has an F-class insulation and is recommended for use with a 5 μF/370 VAC capacitor. The motor can also be installed with belly-band mounting, allowing easy installation.
| Number of Phases | Single-Phase |
|---|---|
| Amperage | 1.4 A |
| Number of Speeds | 2-Speed |
| Rotation Speed | 1095 RPM |
| Horsepower | 1/4 HP |
| Frequency | 60 Hz |
| Voltage | 230V |
| Frame Size | 48Y |
| Approvals | UL-recognized |
| Insulation Class | Class F |
