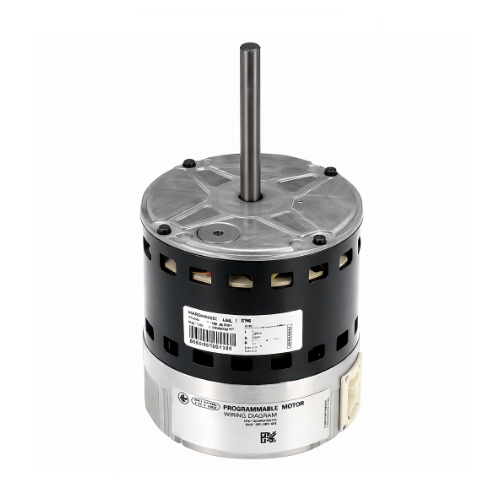

Trane MOT9229 Programmed Blower Motor Module 1/2 HP 120/208-240V 1,050 RPM

Name: Trane MOT9229 Programmed Blower Motor Module 1/2 HP 120/208-240V 1,050 RPM
Brand: Trane
SKU: MOT9229
Price: 875.22 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Trane MOT9229 Programmed Blower Motor Module 1/2 HP 120/208-240V 1,050 RPM

SKU: MOT9229

UNSPSC: 26101105

Brand:

Rating:

Quantity	Price	Stock
4 Usually Ships 2 - 4 Weeks	$875.22 /ea	4

Add to Cart

Add to Wishlist

The MOT9229 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane VAL2869 1 1/8" 120V Regulating Valve	VAL2869 Brand Trane
Trane MOD2183 Variable Speed Programmed EMC	MOD2183 Brand Trane

Add to Cart

Add to Wishlist

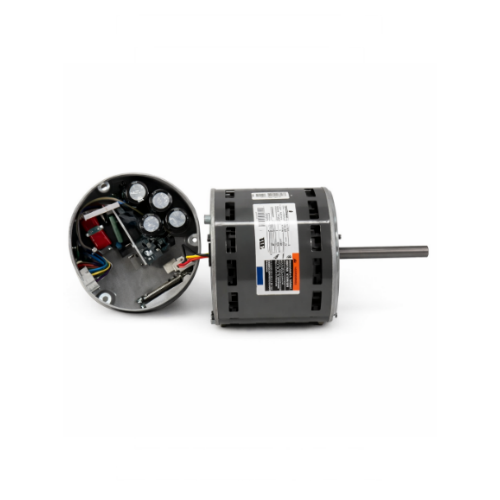

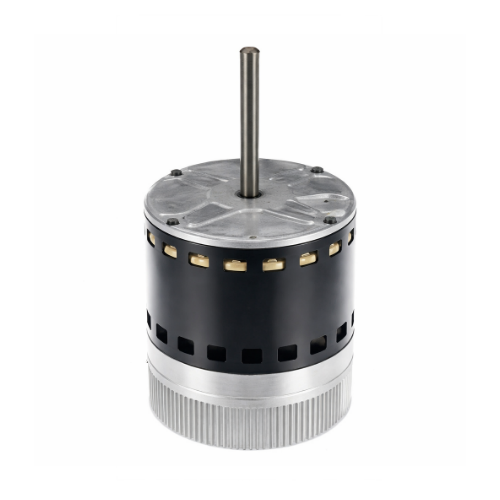

Trane MOT9229 Programmed Blower Motor Module is a factory-programmed OEM ECM blower motor for residential and light commercial gas or electric forced-air furnaces and air handlers that require quiet, efficient airflow control.

This 1/2 HP single-phase, variable-speed motor runs at 1,050 RPM on 120/208-240V with 4.3 A (240V) and 7.7 A (120V) locked-rotor current, improving comfort and efficiency versus standard PSC motors. The compact 48-frame, open dripproof enclosure keeps the windings cool while protecting internal components, and the 0.5 in diameter, 4 in long shaft is designed for direct-drive blower wheels in shaft-up, horizontal, or shaft-down mounting positions.

Bidirectional clockwise/counterclockwise rotation supports a broad range of Trane OEM and programmed ECM replacement applications, making one motor suitable for multiple system designs, and this unit is engineered to be compatible with the following Trane models and air handlers:

4TEE3F31A1000AA	4YCZ5036E1090AA	4YCZ5036E1070AA
4YCZ5036E1090BA	2TEE3F31A1000AA	4YCZ5036E1070BA
4YCZ5036F1070AA	2TEE3D31A1000AA	4TEE3F31A1000AC
4YCZ5036F1090BA	A4AH5V42A1C30AA	4YCZ5024F1060AA
A4AH6V30A1B30BA	A4AH5V30A1B30AA	4TEE3D31A1000AA
TEM6A0C36H31SCA	4TEE3F31B1000AA	4YCZ5024E1060AA
TEM6A0C42H41SCA	4TEE3F31A1000AB	A4AH6V42A1C30BA
TWE031E13FB0	A4AH6V36A1C30BA	A4AH5V36A1C30AA
TWE031E13FB1	4TEE3F31B1000BA	4YCZ5036F1070BA
TWE031E13FB2	TEM6A0B30H21SCA	4YCZ5036F1090AA

MOT9229 directly replaces Trane MOD2183 blower motor module, making it a drop-in OEM-style programmed ECM upgrade for many Trane furnace and air handler applications.

Voltage	120/208-240V
Number of Speeds	Variable
Mounting Type	Shaft Up/Horizontal/Shaft Down
Motor Enclosure Type	Open Dripproof
Locked Rotor Current (A)	4.3 (240V) 7.7 (120V)
Horsepower	1/ HP
Frame	48
Speed	1,050 RPM
Number of Phases	Single Phase
Rotation	Clockwise / Counterclockwise
