Trane SFCAP10440 Oval Run Capacitor 10MFD 370/440V

Name: Trane SFCAP10440 Oval Run Capacitor 10MFD 370/440V
Brand: Trane
SKU: SFCAP10440
Price: 24.36 USD
Availability: InStock
Rating: 5 (1 reviews)

Images for general purposes only. Actual may be different than depicted.

Trane SFCAP10440 Oval Run Capacitor 10MFD 370/440V

SKU: SFCAP10440

Brand:

Rating: (1)

Quantity	Price	Stock
53 Usually Ships 2 - 5 Days	$24.36 /ea	53

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

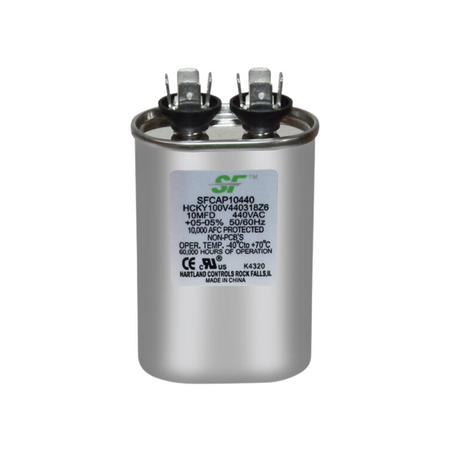

The Trane SFCAP10440 (CPT00088) is an oval run capacitor with 10 MFD capacitance. The capacitor has a power rating of 370/440V and 50/60 Hz. It features an aluminum body with stainless steel top cover. CE and UL Recognized.

The run capacitor is oil filled and protected by 10,000 AFC (Available Fault Current). This type of capacitor keeps the motor going and maintains the torque.

The SFCAP10440 is a direct replacement for model number SFCAP10440L. Suitable for motors used in furnaces, heat pumps, air handlers, central air conditioners, and packaged unit/RTU.

Check out below the following model numbers that fit SFCAP10440 oval run capacitor:

4DCY4060A1120AA
4YCC3036A1064AB
4YCC3036A3075AB
4YCC3036A4096AB
TDD2C100A9482AD

4DCY4060B1120AA
4YCC3036A1075AB
4YCC3036A3096AB
TDD2C100A9482AA
TDD2C100A9482AE
TUD2B080A9482AC

4YCC3018A1040AA
4YCC3036A1096AB
4YCC3036A4064AB
TDD2C100A9482AB
TUD2B080A9482AA
TUD2B080A9482AD

4YCC3018A1040AB
4YCC3036A3064AB
4YCC3036A4075AB
TDD2C100A9482AC
TUD2B080A9482AB

Operating Temperature	-40 to 70°C (-40 to 158°F)
Microfarad Rating	10MFD (± 05 - 05 %)
Frequency	50/60 Hz
Voltage	370/440V
Operating Life	60,000 Hours
Case Material	Aluminum
Cover Material	Stainless Steel

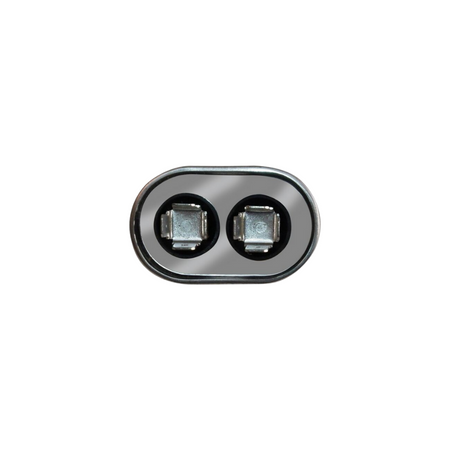

Connection Size	1/4″ Tab Male Terminals
Leakage Current	30 microAmp
Dissipation Factor	0.1%
