Trerice 600CB3502LA100 Analog Gauge 3.5" Diameter 0-100 psi 1/4" Bottom Mount

Name: Trerice 600CB3502LA100 Analog Gauge 3.5" Diameter 0-100 psi 1/4" Bottom Mount
Brand: Trerice
SKU: 600CB3502LA100
Price: 45.61 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Trerice 600CB3502LA100 Analog Gauge 3.5" Diameter 0-100 psi 1/4" Bottom Mount

SKU: 600CB3502LA100

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$45.61 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

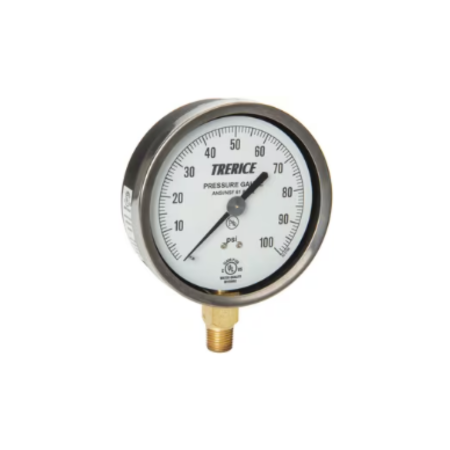

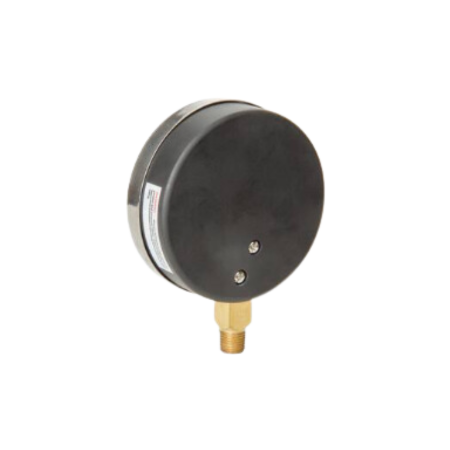

The Trerice 600CB3502LA100 is a 3.5" analog gauge with a 1/4" NPT LM brass connection. This device has a cast aluminum body that can handle a 0-100 psi pressure range. UL Listed.

The analog gauge features an adjustable pointer to allow accurate pointer adjustment. This component measures pressure by reacting to pressure change and pointing to scale numbers with ±1.0% accuracy.

The 600CB series is a stem-mounted flangeless gauge with a mount at the bottom for easy wall and vertical pipe installation.

Gauge Type	Analog Gauge
Accuracy	±1%
Connection	1/4" NPT LM Brass
Color Finish	Black
Brand Series	600CB
Maximum Temperature	212°F
Material	Cast Aluminum
Approval	UL Listed
Pressure Range	0-100 psi
Dial Size	3.5"

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Can this TRERICE P/N 600CB3502LA100 gauge be used for a fuel pump, diesel fuel line?

Asked on October 15, 2018 by florencio from USA

1 Answers

Have an answer? Click Here

This gauge is commonly used on air, water, oil, or gas applications that are compatible with brass/bronze and on applications without excessive vibrations or pulsations. If your application meets these standards you should be able to use this gauge. We suggest you consult a local licensed technician to ascertain any and all restrictions and limitations your particular set up requires. This particular Trerice gauge is currently out of stock, however Kodiak Controls makes the direct replacement of this gauge the Kodiak 1013560 which is currently IN STOCK and is much more affordable. They are both 0-60 PSI with a 3.5" dial and 1/4" threaded bottom mount connection.

Replied on October 15, 2018 by Ron from Industrial Stores
