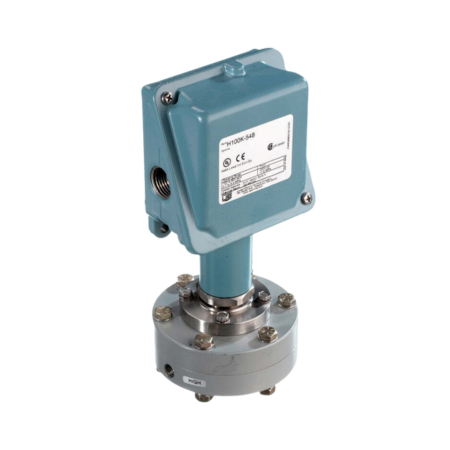

United Electric H100K-540 Differential Pressure Switch SPDT Epoxy-coated Enclosure 0.2-7" W.C.

United Electric H100K-540 Differential Pressure Switch SPDT Epoxy-coated Enclosure 0.2-7" W.C.
Images for general purposes only. Actual may be different than depicted.

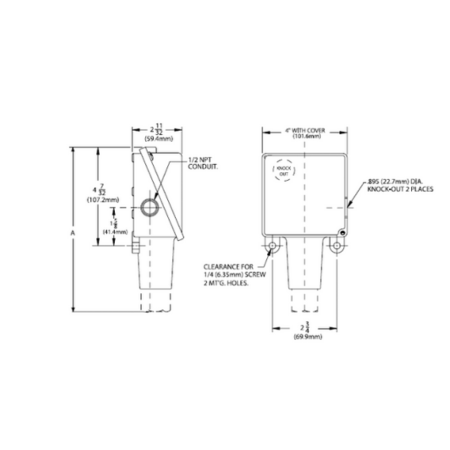

United Electric H100K-540 Differential Pressure Switch SPDT Epoxy-coated Enclosure 0.2-7" W.C. United Electric H100K-540 SPDT Differential Pressure Switch Drawing

United Electric H100K-540 Differential Pressure Switch SPDT Epoxy-coated Enclosure 0.2-7" W.C.

SKU: H100K-540
Rating:
Quantity Price Stock
Usually Ships 1 - 2 Weeks
Usually Ships 1 - 2 Weeks
$998.57     /ea
Usually Ships 1 - 2 Weeks
0
$0.00
0
$0.00
0
H100K-540

The United Electric H100K-540 is an SPDT differential pressure switch with 0.2 to 7” w.c. adjustable setpoint range.  This device has an epoxy-coated gasketed cast aluminum body, NEMA 4X enclosure, and Buna-N diaphragm.

The differential pressure switch is an electromechanical device that senses a pressure difference between two sources.  This component features a tamper-resistant setpoint and a weather-proof mechanical switch.

The H100K-540 is suitable for industrial and commercial applications.  It is commonly used for heat tracing, freeze protection, fire suppression, annunciator panel inputs, and processing equipment like pumps or compressors.

Operating Pressure 200 psi
Storage Temperature -54 to 71°C (-65 to 160°F)
Connection Size 1/8" NPT
Proof Pressure 400 psi
Adjustable Setpoint Range 0.2 to 7" W.C.
Body Material Epoxy-Coated, Gasketed Cast Aluminum
Diaphragm Material Buna-N
Enclosure NEMA 4X (weatherproof)
Switch Output SPDT
Application Industrial and Commercial

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Good Morning, My name is Jorge. I have a UE Model 100K-540 to measure differential pressure to indicate Flow - No Flow condition. The Unit is mounted in the discharge side of a Fan. Question: Is the high-pressure port to be connected to the process and the low port to atmosphere?
Asked on April 21, 2020 by Jorge from Cincinnati, Ohio
1 Answers

Have an answer? Click Here

A:
Hello Jorge.  Whereas the unit senses pressure differentially, to work as designed it requires both ports to be connected and the differential pressure between the two ports sensed.  When the differential pressure falls outside of the set range; 0.2-7" water colum than the SPDT switch actuates from its resting position.  On the Technical Data" tab of the product page we have the product data sheet and the Instruction Manual.  Neither answer your question directly. Whereas this part can have a crucial impact on safety of the equipment and environment it is protecting, and as each application use is different, we must refer you to these documents for more information.  Moreover, we strongly suggest that ONLY licensed and qualified technicians work of installing and adjusting such equipment.
Replied on April 21, 2020 by Ori from Industrial Stores
fa4559715b44240840de3e018330f2e51db99fb182656e4004ee26020f65ed52
