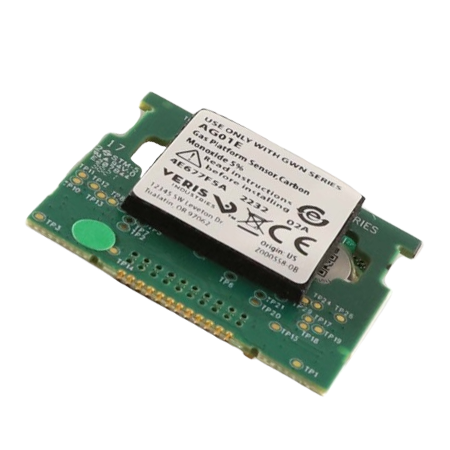

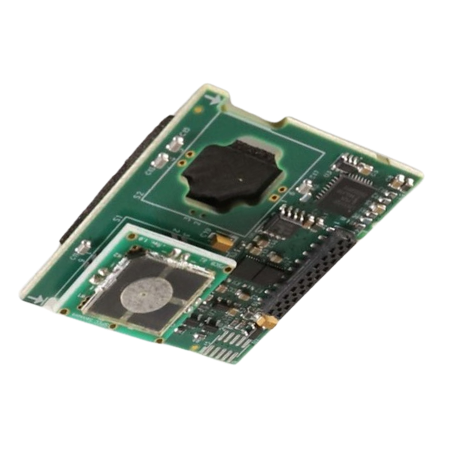

The AG01E is a carbon monoxide (CO) sensor module that has a 0-500 ppm measurement range and ±5% accuracy. It features an electrochemical sensor, 1 ppm resolution, and 0-200 ppm analog output scaling. The module operates at -20°C to 50°C temperatures and 0-90% RH humidity range. The unit is CE-marked.
The CO sensor module is ideal for detecting CO from sources such as gasoline-powered engines, furnaces, water heaters, and generators. It features a switch selectable low-level setpoint of 25 or 35 ppm and a fixed high-level setpoint of 180 ppm.
The Veris AG01E is easy to install and mounts with the Veris GWN Series gas platform unit. The sensor also requires no field calibration, making installation quick and seamless.
| Sensory Type | Electrochemical |
|---|---|
| Measurement Range | 0 to 500 ppm |
| Accuracy | ±5% of range |
| Analog Output Scaling | 0 to 200 ppm |
| Resolution | 1 ppm |
| Low Level Setpoint | 25 or 35 ppm (switch selectable) |
| High Level Setpoint | 180 ppm (fixed) |
| Operating Temperature Range | -20 to 50°C (-4 to 122°F) |
| Operating Humidity Range | 0-90% RH non-condensing |
| Approvals | CE-marked |
