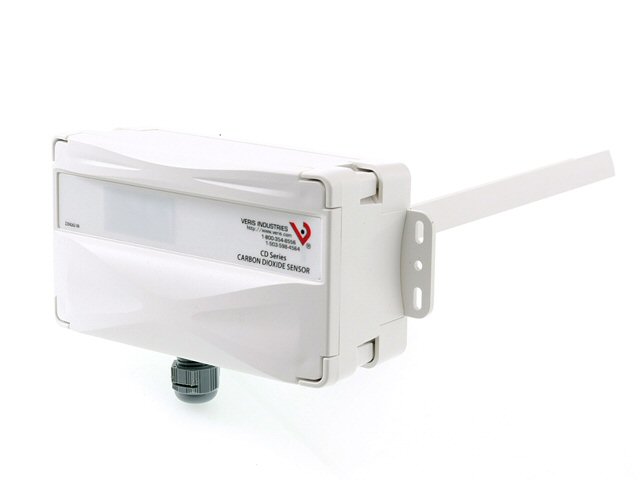

The CDE and CWE are non-dispersive infrared (NDIR) sensors designed for measuring environmental CO2 concentration in ventilation systems and indoor living spaces. Their measurement range of 0 to 2000 ppm makes them compliant with ASHRAE and other standards for ventilation control The CWE/CDE Series provides a user-selectable 4 to 20 mA or 0 to 10 Vdc output for versatility. Microprocessor-based digital electronics and a unique self-calibration algorithm improves long-term stability and accuracy.

APPLICATIONS

• Controlling ventilation in response to occupancy

• Facilitating compliance with ASHRAE 62.1 standard for air quality

• Office buildings, conference rooms, schools, retail stores, etc.

FEATURES

• Microprocessor-based design increases accuracy and reduces installation time

• Non-dispersive infrared technology repeatable to ±20 ppm ±1% of measured value...high accuracy measurements

• Innovative self-calibration algorithm...easy to maintain

• 5-year calibration interval (recommended)

• Low ambient sensitivity

• Output 4 to 20 mA/0 to 10 Vdc for flexible control system interface

• 3-year factory warranty from date of purchase
