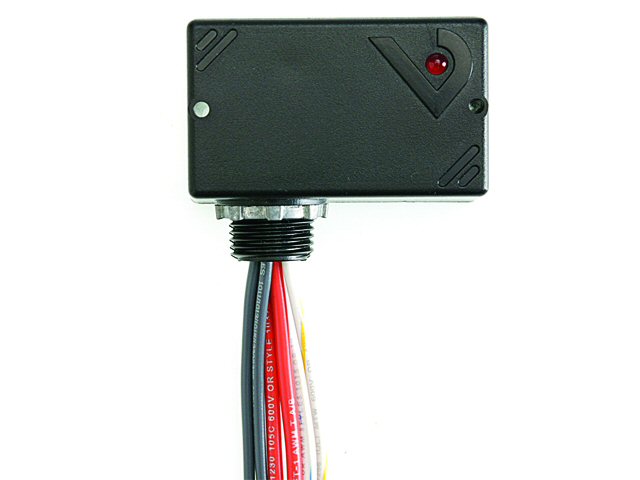

The H120 Series devices offer a fixed current switch and SPST relay in a single externally mounted housing. Combining the current sensor and relay in one easy-to-install package eliminates the need to fit multiple devices into small electrical enclosures and simplifies the installation. Eliminate the labor associated with installing a separate current sensor.

APPLICATIONS

• Unit Ventilators
• Fan Coil Units
• Exhaust Fans
• Fan Terminal Units
• Fractional HP Motors
• Light Resistive Loads

Sleek combination enclosed relay and current switch saves installation time and space

• The current switch and relay are in series...connect the contacts to the load and your current switch is automatically installed
• The nipple mount housing can be connected to any 1/2" conduit knockout for installation versatility
• Relay coil LED streamlines job commissioning and check out
• HP ratings make the H120 ideal for control and status of fractional HP motors
• 5-year limited warranty
• NEMA 1 rated housing may be used in plenum spaces
• Can be externally mounted to the electrical enclosure...space saver

Super-low turn-on for the smallest of loads

• 0.1A turn-on...easily monitors the smallest motors
