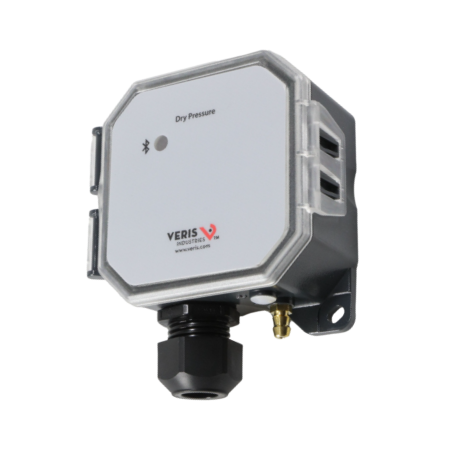

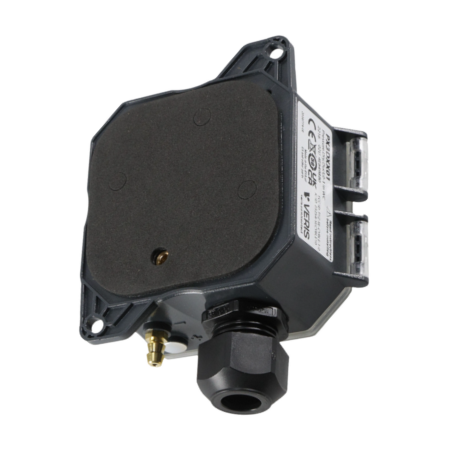

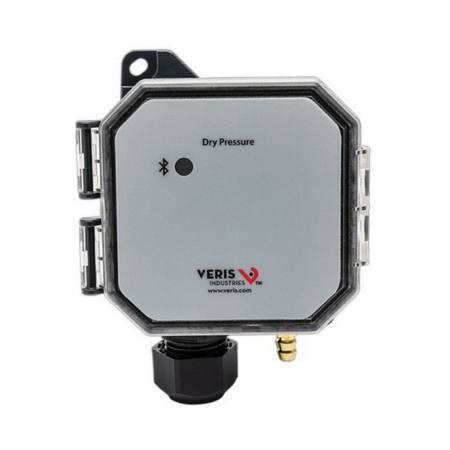

The Veris PX3DXX01 is a differential pressure and air velocity transducer designed for duct installation. It is housed in a durable IP65 (NEMA 4) enclosure that allows mounting in wash-down locations. Features no display and offers app connectivity via Bluetooth when enabled through the Veris App. CE marked and ideal for use in demanding HVAC environments.
Capable of measuring either pressure or velocity with a simple switch selection, the component provides selectable outputs of 4–20 mA, 0–5 VDC, or 0–10 VDC. It operates on 24 VAC or 12 to 30 VDC input power, with a pressure range of 0 to 1" WC (0 to 250 Pa) and a temperature range of -4 to 140°F (-20 to 60°C). Compatible with dry air or inert gas media.
The PX3DXX01 is a direct replacement for the PXDXX01S. For applications without Bluetooth connectivity, refer to model PX3DXX01S. Ideal for various HVAC control applications, including airflow velocity monitoring, duct static pressure monitoring, building pressure monitoring, filter status pressure monitoring, and VAV (Variable Air Volume) control.
| IP Protection | IP65 (NEMA 4) |
|---|---|
| App Connectivity | Veris App via Enablable Bluetooth |
| Media Compatibility | Dry Air or Inert Gas |
| Input Power | 24 VAC or 12 to 30 VDC |
| Selectable Outputs | 4-20mA, 0-5 VDC, or 0-10 VDC |
| Operating Pressure Range | 0 to 1" WC (0 to 250 Pa) |
| Operating Temperature Range | -4 to 140°F (-20 to 60°C) |
| Installation Configuration | Duct |
| Enclosure Material | ABS Plastic |
| Fitting Material | Brass |
