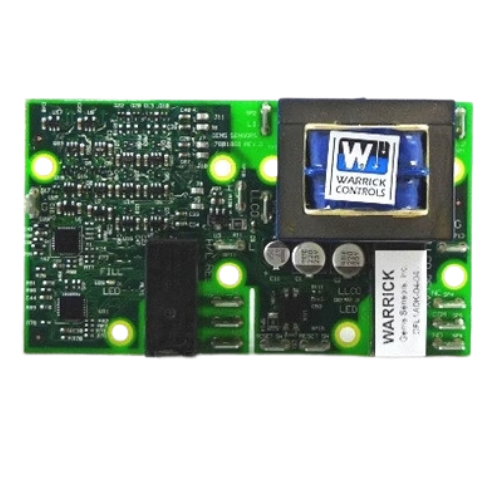

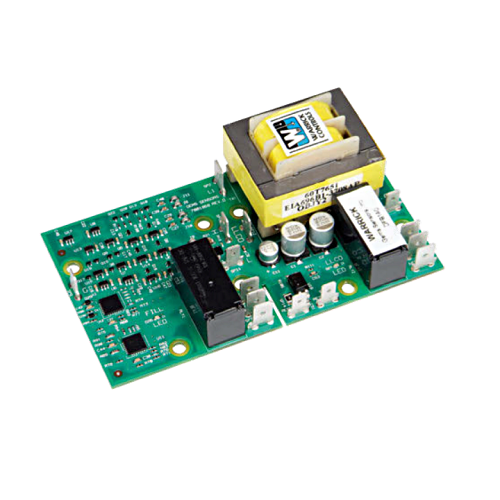

Warrick DFL1A0K0404 Dual Function Open Circuit Board Control with 10K OHM inverse operation and 120V supply voltage. The control device has a reset function and a power outage option.
The Dual Function Series are level control devices with two independent level functions, one single-level control operation, and one differential-level operation. They are best used for boilers, chemical delivery systems, and foodservice equipment. The DF series offer a Power Outage option wherein the control is de-energized during the outage and re-energizes when the power is resumed. While the reset button option is used when the water level is low causing the control to be deactivated. The reset is activated when the amount of water reaches a normal level.
Features:
| Mode | Inverse |
|---|---|
| Time Delay (decreasing level) H/L function | 4 seconds |
| Contact Design Limit Control/Level Control | 1 SPDT (1 form C), dry contacts |
| Time Delay (decreasing level) LLCO function | 3 seconds |
| Time Out Option | 30 sec Time Out |
| Standoff Style | 1/16” Panel |
| Operating Ambient Temperature Range | -40°F to +150°F (-40°C to +65°C) |
| Control Design | Open-board No enclosure |
| Sensitivity | 10K OHM |
