Warrick-Gems 26MC1M0E Low Water Cutoff Plug-In Module General Purpose Control 26K Ohm 120V

Name: Warrick-Gems 26MC1M0E Low Water Cutoff Plug-In Module General Purpose Control 26K Ohm 120V
Brand: GEMS (Warrick)
SKU: 26MC1M0E
Price: 464.05 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Warrick-Gems 26MC1M0E Low Water Cutoff Plug-In Module General Purpose Control 26K Ohm 120V

SKU: 26MC1M0E

Brand:

Rating:

Quantity	Price	Stock
5 Usually Ships 1-2 Weeks	$464.05 /ea	5

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Series 26M is designed for low-water cutoff protection. This control meets CSD1 requirements for boiler low water cutoff. Series 26M features powered contacts. If non-powered contacts are required, request information on Series 26NM.

Features:

• Powered Contacts
• Solid State Reliability
• Modular Plug-In Design
• LED Monitoring
• Low Voltage Sensor
• Time Delays Available
• 11-Pin Socket
• Meets CSD1 Requirements
• U.L. “Limit Control”
• Optional Test Feature
• Optional Dirty Electrode Detection
• Optional Manual Reset Button Feature. If Level Drops, Control is Deactivated Until Liquid Level Returns to Normal and Pushbutton is Depressed
• Optional Power Outage Feature Ignores Nuisance Outages and Resets When Power is Restored

Terminal Style	Screw Connector
Approvals	UL 353 File #MP1430
Temperature Range	-40F to 150F (-40C to 65C)
Contact Rating	10A Resistive 1/3Hp
Contact Design	1 Normally Open & 1 Normally Closed

Download Product Information:

Warrick-Gems 26 Series Low Water Cutoff Plug In Modules Technical Datasheet

Warrick-Gems 26 Series Low Water Cutoff Plug In Modules Installation Instructions

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Does this part have the manual reset button installed?

Asked on June 10, 2024 by Samantha from Amarillo, Tx

1 Answers

Have an answer? Click Here

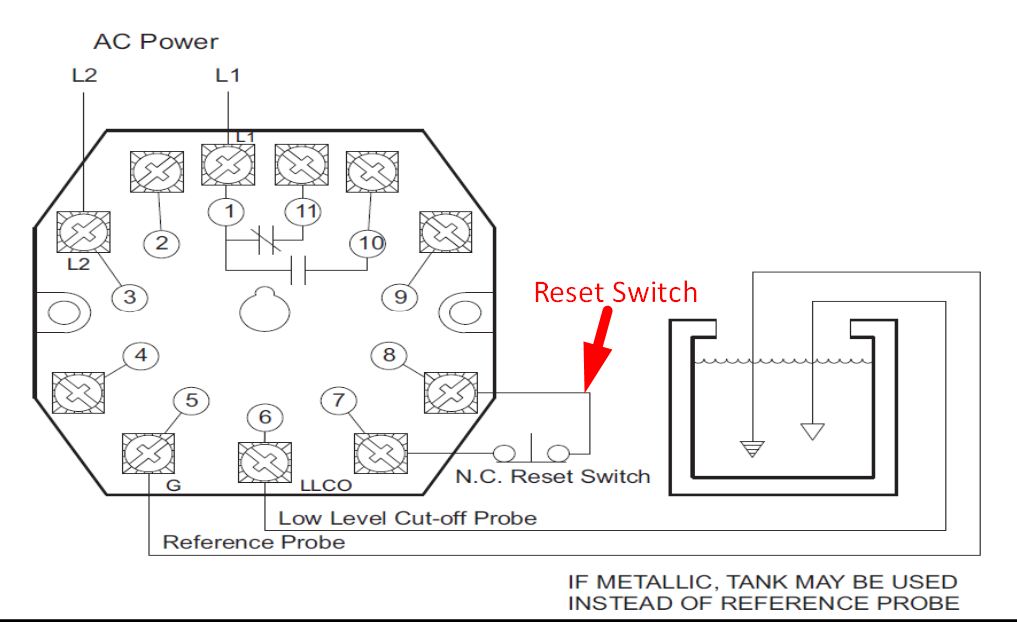

The 26MC1M0E has no manual reset switch installed on the low water cutoff control. However, the control does have a manual reset with a power outage feature. To use this feature, a normally closed reset switch needs to be wired between terminals 7 and 8 (per the product bulletin).

Please note that per the product technical data sheet, "Caution: Contacts are powered. If non-powered contacts are required, request information on Series 26NM".

The document further states......

"AUTOMATIC RESET (Reset Switch terminals not wired)

When the liquid rises to the electrode on terminal LLCO, the control energizes, changing state of the load contacts. (LED will be lit) The control remains energized until the liquid level recedes below electrode on terminal LLCO. The control then de-energizes, (LED will not be lit) returning load contacts to original state. Unless otherwise specified, there is a three second time delay on decreasing level. Liquid must be below probe on terminal LLCO for a full three seconds before control de-energizes.

MANUAL RESET (Normally closed pushbutton installed across reset terminals)

When the liquid rises to the electrode on terminal LLCO, the control will remain deenergized until the pushbutton is depressed. Upon Reset Switch activation, the control will energize, (LED will be lit) changing the state of the contacts. The control remains energized until the liquid level recedes below electrode on terminal LLCO. The control then de-energizes, (LED will not be lit) returning load contacts to their original state. Unless otherwise specified, there is a three second time delay on decreasing level. Liquid must be below probe on terminal LLCO for full three seconds before control de-energizes. Operator to wait 5 full seconds after power is applied before pressing reset switch (if manual reset is used).

MANUAL RESET OPTIONAL POWER OUTAGE FEATURE (Normally closed pushbutton across reset terminals)

Control will auto-recover from a power loss. With liquid present on LLCO electrode at a power outage event, the control will de-energize and will automatically re-energize upon return of power with liquid present on the probe at powerup. However, if loss of liquid is sensed on power-up, the control will remain de-energized until liquid again rises to electrode and pushbutton is depressed. The control will not attempt to auto-recover from a power outage if no liquid was present on the probe at power loss."

Replied on June 13, 2024 by Ori from Industrial Stores
