Series LFN45B-EZ Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. This series is suitable for water supply pressures up to 400psi (27.6 bar) and may be adjusted from 25 – 75psi (172 – 517 kPa). The standard setting is 50psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply. The LFN45-B-EZ features Lead Free* construction to comply with Lead Free* installation requirements.

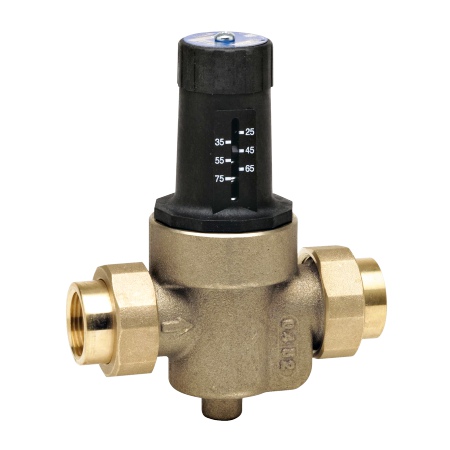

This 0009494 1 inch water pressure reducing valve consists of a lead free brass body construction, solder union inlet and outlet, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass, and a sealed spring cage for waterworks pit installations.

Features:


• Factory calibrated outlet pressure adjustment
• Easily adjustable pressure setting
• Double union inlet & outlet connections (option DU)
• Integral stainless steel strainer
• Thermoplastic cage & seat
• Lead Free* Copper Silicon Alloy body construction
• Serviceable in line
• Bypass feature controls thermal expansion pressure
