Watts Series LFN45B Lead Free Water Pressure Reducing Valves

Series LFN45B Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. The LFN45B features Lead Free* construction to comply with Lead Free* installation requirements. This series is suitable for water supply pressures up to 300psi (20.7 bar) and may be adjusted from 25 – 75psi (172 – 517 kPa). The standard setting is 50psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.

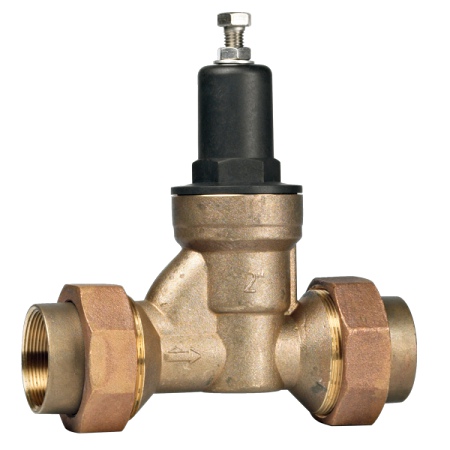

This 0009523 2 IN lead free water pressure reducing valve consists of a cast copper silicon alloy body construction, integral stainless steel strainer, NPT threaded female inlet x NPT female outlet.

Features:


• Integral stainless steel strainer
• Thermoplastic seat & cage
• Lead Free cast copper silicon alloy body
• Serviceable in line
• Bypass feature controls thermal expansion pressure
• Sealed spring cage on all models for accessible outdoor or pit installations
