Watts Series LF215 Super Sensitive Low Pressure Regulators

Series LF215 Super Sensitive Low Pressure Regulators are designed to meet low pressure precision requirements. The high ratio of diaphragm to orifice provides excellent performance and stability at low reduced pressure. The Series LF215 is ideally suited for water requirements up to 2.5 gpm (9.5 lpm) due to its Lead Free* brass body and brass & stainless steel internal parts. The LF215 is also suitable for pressure supply to wall attachment fluidic devices. The LF215 features Lead Free* construction to comply with Lead Free* installation requirements.

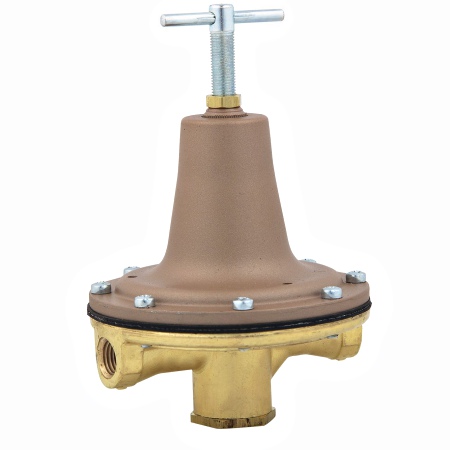

This 1/4 inch Lead Free Precision Low Pressure Regulator consists of a lead free brass body with a tee handle, female NPT connections, replaceable stainless steel seat, large diaphragm, and 30 mesh stainless steel strainer. The reduced water pressure range is 0 to 8 psi (0 to 55 kPa) with the water pressure set at 4 psi (28 kPa). The temperature range is 0 to 120 degrees F (-18 to 49 degrees C).

Features:


• Rugged forged Lead Free* brass body for water service
• Replaceable stainless steel seat
• Large diaphragm provides exceptional performance, particularly under 10psi (69 kPa)
• 30 mesh stainless steel strainer
